Latest Leather Fabric Bronzing Machine

Latest Leather Fabric Bronzing Machine

Latest Leather fabric Bronzing Machine Application & Features The bronzing machine is suitable for bronzing, printing of fabric, plastic-skin, PU, PVC, cotton-hemp, silk, knitting etc. or colour changing of fabric, leather, PU, etc. It is widly used in garment industry, home decoration...

Product Details

Latest Leather fabric Bronzing Machine


Application & Features

  • The bronzing machine is suitable for bronzing, printing of fabric, plastic-skin, PU, PVC, cotton-hemp, silk, knitting etc. or colour changing of fabric, leather, PU, etc. It is widly used in garment industry, home decoration industry, sofa fabric, etc.

  • Circulating air system of the oven is used.

  • Blade rack can be multiaspect adjusted, and swing around: effectively protect blade and engraved roller and guarantees good stamping/bronzing effect.

  • Pneumatic heating press unit (conducting oil heating roller and gel roller): larger contact surface, good transferring effect, solid lamination, easy and convenient operation and energy saving.

  • Convenient and synchronous operation, energy conservation.

  • Winding device is designed in the front and at the back of the machine, it is easy to operate.

  • Other features can be customizable.



Main Structure
1)Unwinding: expansion center winding, manual tension control, maintain stable
operation. And equip with two other unwinding frame, easy to operate.
2)Bronzing printing device: composed by gear case transmission device, bronzing
frame, scraper device, slurry tank.
A. Gear transmission device: from frequency conversion motor device, though
chain wheel drive power to gear case.
Drive smoothly, easy maintenance, noiseless.
B. Bronzing frame: main frame adopt wallboard structure, work smoothly
without vibration, beautiful.
C. Adjustable guide metrical frame: all use stainless steel rollers, and the



feeding place at an adjustable tension and flatness.
D. Scraper device: scraper could use 0.2mm stainless steel cutter blade, good
flexibility, can print in the roll directly, and maintain a certain pressure,
moreover the relative motion between scraper and roller.
Special worm can adjust impress angle.
E. Slurry tank: worm wheel, gear, rack device, can move the slurry tank up and
down according to the amount of the size.
3)Oven: square structure, install the guiding roll in arc, adjust the guiding roll
according to your needs. Use electric hot air for drying, heat recycling, fast,
energy conservation, and uniformity heated.
4) Heat transfer device: Φ200cylinder pressure at both ends, heat pressing Φ420
heating conducting oil roll and Φ360 rubber roller, can heat transfer the figure on
the membrane or paper to the fabric.
5)Duplex winding device: two rollers friction winding (according to your needs can
use constant tension center winding).


Main Technical Parameters

Width(standard)1600~3500mm
 Heating rollerdiameter 420mm, about 180 degrees
Gel rollerdiameter 360mm
Power40~120kw+7.8kw
Speed10~40m/min
Estimated Machine Weight4000~8000kg

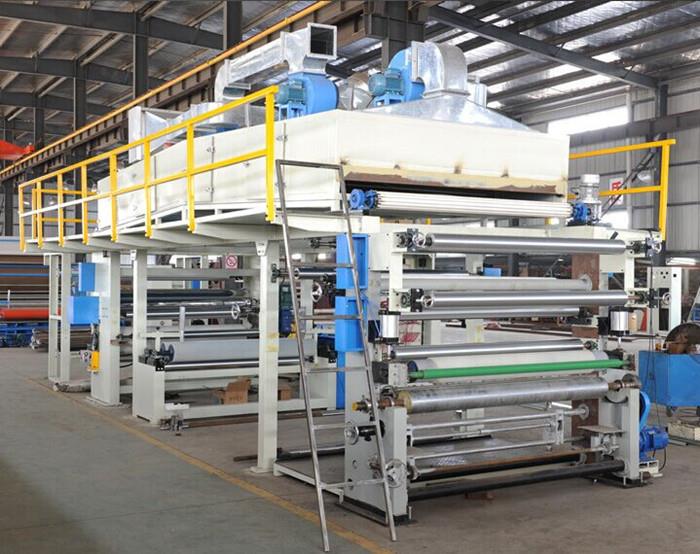

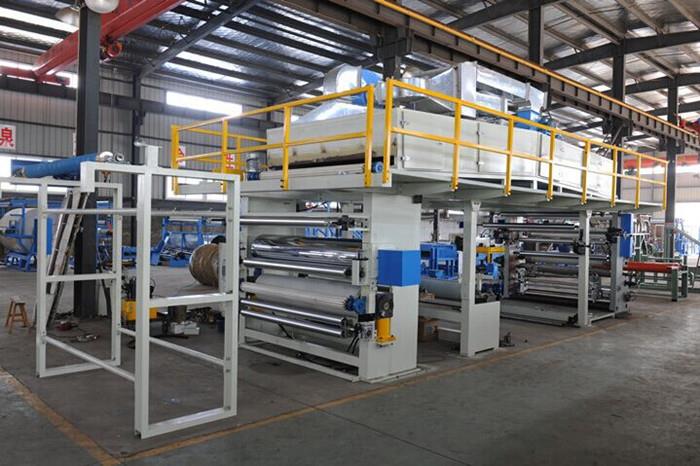

Machine photos:






Bronzing products photos:
