Manual 4-column Beam Cutting Machine,four Columns Cutting Press

Manual Beam Cutting Press Usage and characteristics 1.The hydraulic 4-column cutting machine is mainly suitable for cutting various nonmetal materials, such as sponge , Clothing Leather Material,Pu Clothing Material, rubber, plastic, foam and so on.

Product Details

Manual Beam Cutting Press

Usage and characteristics
1.The hydraulic 4-column cutting machine is mainly suitable for cutting various nonmetal materials, such as sponge , Clothing Leather Material,Pu Clothing Material, rubber, plastic, foam and so on. It is widely used in toy industry, footwear industry, leather industry, etc.
2.Adopt double oil cylinder, precise double crank connecting rod mechanism, which can guarantee that the cutting depth at every cutting position is same.
3.It can suppot single-side or double-side automatic feed attachment and raise the working efficient of the whole machine by two or three times.
4.The pressing board of cutting carries out slow cutting when it contacts the die cutter/cutting mould, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
5.With special setting mechanism,and in conjunction with die cutter and cutting depth setting,the travel adjustment is simple and accurate.
6.Center automatic lubrication system can guarantee the precision and can raise abrasive resisitance.
7.Manual beam cutting press of special specifications can be customized.

Main Technical Data(Customizable)

Model

XCLP3-C

Maximum cutting force

30T

35T

400T

500T

600T

800T

1000T

Working table(mm)

1600*500

1600*610

1600*610

1600*800

1600*800

1600*900

1600*900

Main motor power(kw)

1.5

3

3

4

5.5

7.5

7.5

Machine weight(kg)

1600

2300

1600

3200

4200

4600

7000

Machine Advantage:

1.Safe, two-hand trip operation, easy to operation.

2.The main machine adopts double oil cylinder, double-crank connecting rod balance, four-columns, which can guarantee the cutting depth at every cutting position is the same.

3.The pressing board carries out slow cutting when it presses down to contact the die cutter, which can make that there is no size error between the uppermost layer and lowmost layer of cut material.

4.Single-side or double side auto feeding system for choosing, which can improve the producting capacity.

5.The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.

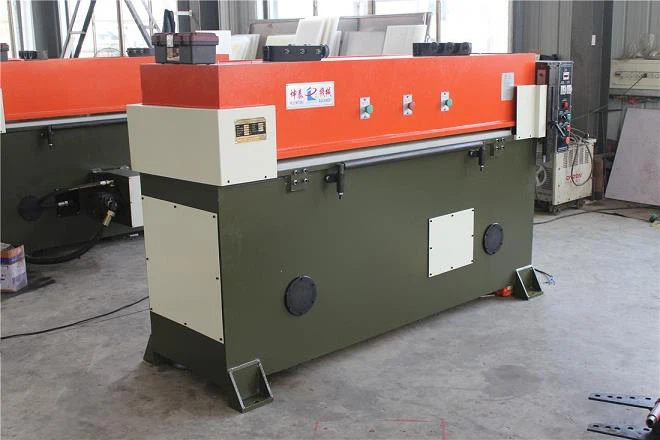

Manual Beam Cutting Machine Picture

hydraulic four-column cutting machine(001).jpg


As one of the professional manufacturers in China, Kuntai Machinery is also a leading supplier of manual 4-column beam cutting machine,four columns cutting press. Providing you with 24 hours service and free installation training service, we warmly welcome you to buy our high quality machine with high precision at competitive price.
