Automatic traveling head cutting machine,clicker press

Gaskets cutting machine Range of Application Hydraulic gaskets Cutting Machine is mainly suitable for die cutting single or multiple layers of rubber, felts, fabric, etc by die cutter. It is widly used in many industries, such as: ·Automotive interior

Product Details

Automatic traveling head cutting machine



Range of Application

This hydraulic press machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:

  • Automotive interior

  • Abrasives, abrasive paper

  • Leather and leathergoods – shoe uppers, wallets, purses, belts

 Features of Insole Automatic Cutting Machine

1.Thesedie cutting machines are suitable for continuous cutting operation of nonmetal materials. The finished materials are widely used for such products as abrasive, abrasive paper, shoes, sports materials, car interior materials and medical supplies.

2. Servo motor makes accurate feeding possible and controls horizontal movement and rotation of the cutting head. Multilayers of materials can be clamped by the cylinder for stepping feeding. Other feeding methods are also available on request.

3. The distance of cutting head and feeding length can be accurately set, which has solved the problem of inaccurate feeding and layering length of multilayer materials.

4. The die cutting press has various working modes such as inching, manual and automatic etc. The workers need only to pick up the products, with labor intensity reduced and work efficiency enhanced.

5. Special hydraulic system makes low noise possible and saves oil.  High quality and imported oil pump and other parts are available on request.

6. As the machine is controlled by.PLC with high automation degree, only one worker is required for the whole machine,so that the production efficiency can be enhanced for 3-5 times and the power can be almost 1/3 saved.



Reference Technical Data (Customizable):

Model

KT-C

KT-C

KT-C

KT-C

KT-C

KT-C

Maximum cutting force

25T

25T

25T

50T

50T

50T

Working table

1800*500mm

2000*500mm

2200*500mm

1800*550mm

2000*550mm

2200*550mm

Size of travel head

500*500mm

500*500mm

500*500mm

550*550mm

550*550mm

550*550mm

Adjustable stroke

5-150mm

5-150mm

5-150mm

5-150mm

5-150mm

5-150mm

Motor power

2.2kw

2.2kw

2.2kw

4.0kw

4.0kw

4.0kw

Machine’s dimensions(mm)

2200*620*2000

2400*620*2000

2600*620*2000

2200*620*2000

2400*620*2000

2800*620*2000

G.W

2300kg

2800kg

3500kg

3500kg

4200kg

5000kg

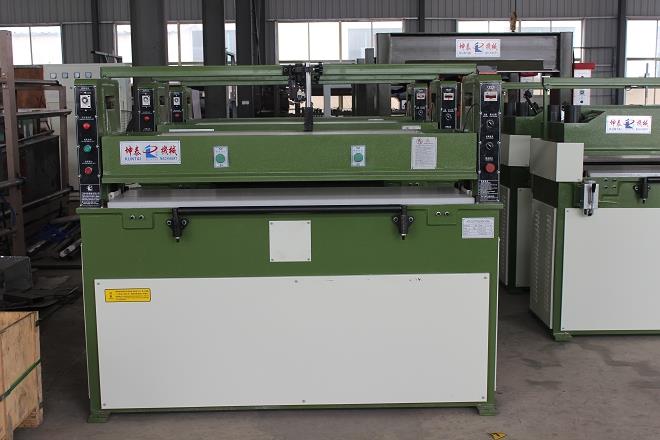

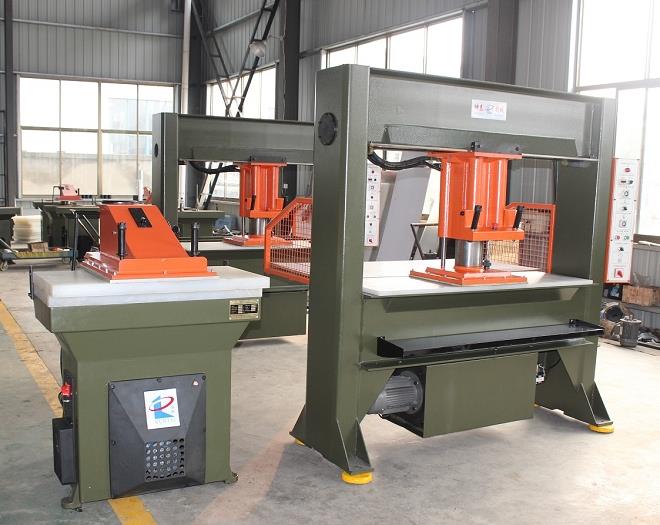

Machine photos:


automatic travel head cutting machine .jpg






Package and shipping:



Inner Package: Protective Film, etc

Outside Package: Standard plywood case

  • Machines well packed with protective film and loaded in export container;

  • English version operation manual and technical data;

  • One-Year-Period wear parts;

  • Tool kit
