Cnc Travel Head Cutting Machine,cutting Press,clicker press

CNC travel head cutting machine Range of Application This CNC travel head Cutting Machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter.

Product Details

CNC travel head cutting machine

Range of Application
This CNC travel head Cutting Machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:
·Automotive interior
·Abrasives, abrasive paper
·Leather and leathergoods–shoe uppers, wallets, purses, belts
·Clothing–components for hats, ties, collars, shoulder pads
·Cork gaskets and mats
·Foam and sponge
·Footwear components–shoes, insoles, insole socks, uppers, straps
·Rubber–gaskets, seals, washers
·Textiles–sample swatches and pattern books, underwear and outerwear components, hats, ties
·Toys–soft toys, advertising novelties, mini jig-saw puzzles, etc.

Features of Travel Head Cutting Press Machine
1.These CNC cutting,press machines are suitable for continuous cutting operation of nonmetal materials. The finished materials are widely used for such products as abrasive, abrasive paper, shoes, sports materials, car interior materials and medical supplies.
2.Servo motor makes accurate feeding possible and controls horizontal movement and rotation of the cutting head. Multilayers of sheet materials can be cut by Sliding table feeding. Other feeding methods are also available on request.
3.The distance of cutting head and feeding length can be accurately set, which has solved the problem of inaccurate feeding and layering length of multilayer materials.
4.The die cutting machine has various working modes such as inching, manual and automatic etc. The workers need only to pick up the products, with labor intensity reduced and work efficiency enhanced.
5.Special hydraulic system makes low noise possible and saves oil. High quality and imported oil pump and other parts are available on request.
6.As the machine is controlled by.computer with automatic nesting system, to make the full use of the material, save the labor. The production efficiency can be enhanced for 3-5 times and the power can be almost 1/3 saved.
7.Travel Head Cutting Machine of special specifications can be customized.

Reference Technical Data (Customizable)

Model

KT-C

Maximum Cutting Force (ton)

25

25

25

50

50

50

Working Table (mm)

1800*500

2000*500

2200*500

1800*550

2000*550

2200*550

Travel Head Size (mm)

500*500

500*500

500*500

550*550

550*550

550*550

Adjustable Stroke (mm)

5-150

5-150

5-150

5-150

5-150

5-150

Motor Power (kw)

2.2

2.2

2.2

4.0

4.0

4.0

Estimated Machine Dimension (mm)

2200*620
*2000

2400*620
*2000

2600*620
*2000

2200*620
*2000

2400*620
*2000

2600*620
*2000

Estimated G.W (kg)

2300

2800

3500

3500

4200

5000

Option
·Rotary head
·Machine Color
·Servo Motor
·Imported oil pump
·Roll Holding Gantries
·Bed Size

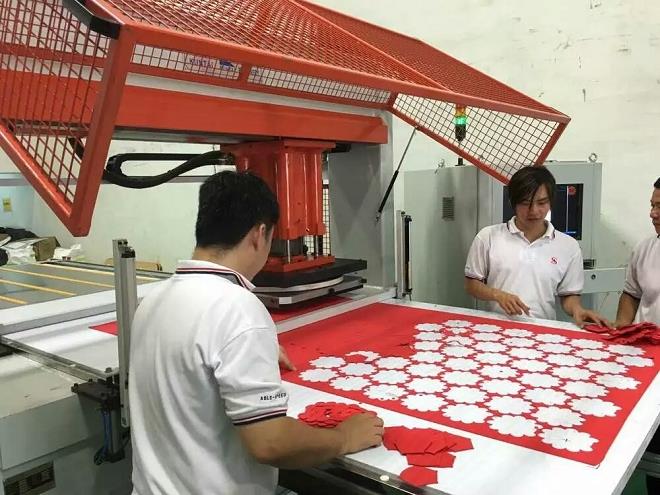

CNC Travel Head Cutting Press Machine Photos:



As one of the professional manufacturers in China, Kuntai Machinery is also a leading supplier of auto-nesting cnc travel head cutting machine,cutting press. Providing you with 24 hours service and free installation training service, we warmly welcome you to buy our high quality machine with high precision at competitive price.
