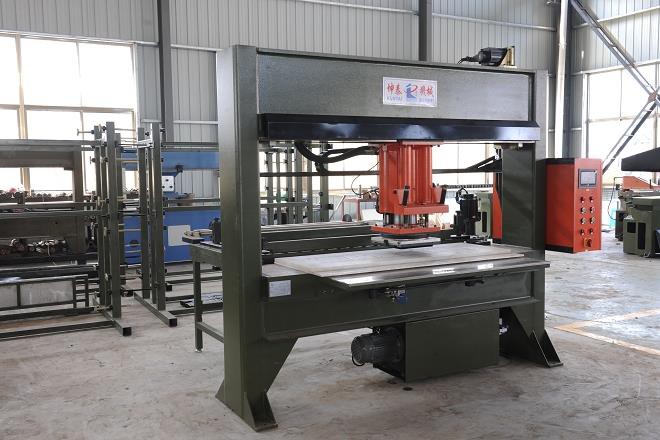

Automatic Travel Head Abrasive Die Cutting Machine,cutting Press,clicking Machine

Automatic travel head cutting machine Range of Application This travel head Cutting Machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter.

Product Details

Automatic travel head cutting machine

Range of Application
This travel head Cutting Machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widely used in many industries, such as:
Automotive interior
Abrasives, abrasive paper
Leather and leather goods–shoe uppers, wallets, purses, belts
Clothing–components for hats, ties, collars, shoulder pads
Cork gaskets and mats
Foam and sponge
Footwear components–shoes, insoles, insole socks, uppers, straps
Rubber–gaskets, seals, washers
Textiles–sample swatches and pattern books, underwear and outerwear components, hats, ties
Toys–soft toys, advertising novelties, mini jig-saw puzzles, etc.

Features
1.The travel head cutting machine is suitable for continuous cutting operation of nonmetal materials. The finished materials are widely used for such products as abrasive, abrasive paper, shoes, sports materials, car interior materials and medical supplies.
2.Servo motor makes accurate feeding possible and controls horizontal movement and rotation of the cutting head. Multilayers of materials can be clamped by the cylinder for stepping feeding. Other feeding methods are also available on request.
3. The distance of cutting head and feeding length can be accurately set, which has solved the problem of inaccurate feeding and layering length of multilayer materials.
4.The die cutting machine has various working modes such as inching, manual and automatic etc. The workers need only to pick up the products, with labor intensity reduced and work efficiency enhanced.
5.Special hydraulic system makes low noise possible and saves oil.  High quality and imported oil pump and other parts are available on request.
6.As the machine is controlled by.PLC with high automation degree, only one worker is required for the whole machine,so that the production efficiency can be enhanced for 3-5 times and the power can be almost 1/3 saved.
7.Cutting board micro-movement device is adopted to prolong the service life of the cutting board.
8.Die Cutting Machine of special specifications can be customized.

Reference Technical Data (Customizable)

Model

KT-C

Maximum Cutting Force (ton)

25

25

25

50

50

50

Working Table (mm)

1800*500

2000*500

2200*500

1800*550

2000*550

2200*550

Travel Head Size (mm)

500*500

500*500

500*500

550*550

550*550

550*550

Adjustable Stroke (mm)

5-150

5-150

5-150

5-150

5-150

5-150

Motor Power (kw)

2.2

2.2

2.2

4.0

4.0

4.0

Estimated Machine Dimension (mm)

2200*620
*2000

2400*620
*2000

2600*620
*2000

2200*620
*2000

2400*620
*2000

2600*620
*2000

Estimated G.W (kg)

2300

2800

3500

3500

4200

5000

Options
Rotary head
Machine Color
Servo Motor
Imported oil pump
Roll Holding Gantries
Bed Size

Machine details

automatic travel head cutting machine .jpg




As one of the professional manufacturers in China, Kuntai Machinery is also a leading supplier of automatic travel head abrasive die cutting machine,cutting press,clicking machine. Providing you with 24 hours service and free installation training service, we warmly welcome you to buy our high quality machine with high precision at competitive price.
