High Quality Foam Insert Cutting Machine

High Quality Foam Insert Cutting Machine

High Quality Foam Insert Cutting Machine Application This kind of Automatic D ie Cutting Press Machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as: Automotive interior Sheet material...

Product Details

High Quality Foam Insert Cutting Machine



Application

This kind of Automatic Die Cutting Press Machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:

  • Automotive interior

  • Sheet material industry supplies

  • Floor mats

  • Abrasives, abrasive paper/sand paper...

  • Leather and leathergoods – shoe uppers, wallets, purses, belts

  • Lampshades – fabric or plastic, with or without cut outs

  • Garment – components for hats, ties, collars, shoulder pads

  • Cork gaskets and mats

  • Filters for machinery, breathing apparatus and the medical industry

  • Foam and sponge – gaskets, packaging, consumer products

  • Footwear components – shoes, insoles, insole socks, uppers, straps

  • Plastics – PVC binders, lampshades, stationery products, gifts, novelties, gaskets

  • Rubber – gaskets, seals, washers

  • Textiles – sample swatches and pattern books, underwear and outerwear components, hats, ties

  • Toys – soft toys, advertising novelties, mini jig-saw puzzles, etc.



Features of Automatic Die Cutting Press Machine

1. KT-C rotating travel head die cutting machine is widely used for continuous cutting of various nonmetal materials, such as PVC film, artificial leather, ball panels, shoes materials and so on.

2. Servo motor is adopted for the rotating travel head so that its movement distance is precisely the same as what is preset. The travel head rotates to make the most of the raw materials.

3.The micro movement feature of the cutting board prolongs its service life.

4. Auto clamp feeding system uses servo motor so that the materials feeding length is precisely the same as what is preset. Several layers of materials can be feed and cut precisely at the same time.

5. Hydraulic oil pump is of Italian brand which produces very low noise.

6. Hydraulic valve is straight way valve, enhancing cutting precision.

7. This machine is highly automatic, providing high productivity.


Option of Automatic Die Cutting Press Machine

  • Rotating head

  • Machine Color

  • Servo Motor

  • Imported oil pump

  • Roll Unwinding Frame

  • Bed Size

  • Feeding Method

  • Parts Brands


Technical Information(Customizable)--Automatic Die Cutting Press Machine

 KT-C250KT-C250BKT-C250CKT-C500KT-C500 BKT-C500C
Cutting Force25 tons25 tons50 tons50 tons





50 tons



50 tons

Working Table(mm)1600*5001800*5002000*5001600*5001800*500 2000*500
Stroke(mm)150mm150mm150mm150mm150mm  150mm
Travel Head Size(mm)



500*500

500*500500*500500*500500*500  500*500
Motor Power 2.2kw2.2kw2.2kw4.0kw4.0kw  4.0kw
Approx. Overall Dimensions (WxDxH)2200*720*20002400*720*20002600*720*20002200*720*20002400*720*2000 2600*720*2000
G.W1800 kg2100 kg3000 kg3000 kg3800 kg 5000 kg



Machine photos:

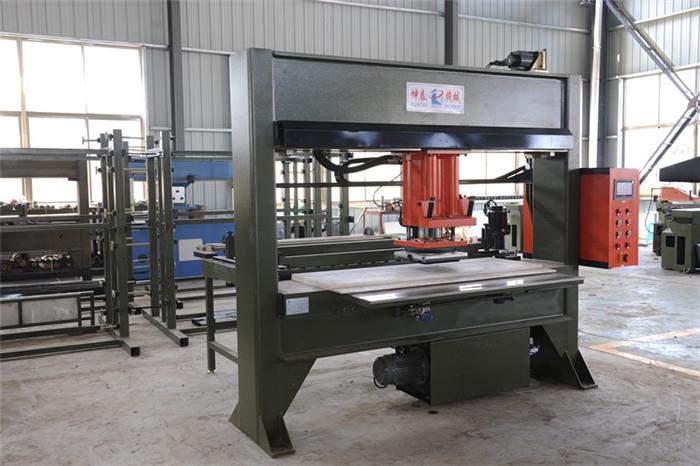

automatic travel head cutting machine .jpg








Package and shipping:
