Hydraulic Abrasive Paper Die Cutting Machine

Hydraulic Abrasive Paper Die Cutting Machine

Hydraulic abrasive paper die cutting machine Range of Application This hydraulic press machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as: Automotive interior Abrasives, abrasive paper L...

Product Details

Hydraulic abrasive paper die cutting machine



Range of Application

This hydraulic press machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:

  • Automotive interior

  • Abrasives, abrasive paper

  • Leather and leathergoods – shoe uppers, wallets, purses, belts

 Features of Insole Automatic Cutting Machine

1.Thesedie cutting machines are suitable for continuous cutting operation of nonmetal materials. The finished materials are widely used for such products as abrasive, abrasive paper, shoes, sports materials, car interior materials and medical supplies.

2. Servo motor makes accurate feeding possible and controls horizontal movement and rotation of the cutting head. Multilayers of materials can be clamped by the cylinder for stepping feeding. Other feeding methods are also available on request.

3. The distance of cutting head and feeding length can be accurately set, which has solved the problem of inaccurate feeding and layering length of multilayer materials.

4. The die cutting press has various working modes such as inching, manual and automatic etc. The workers need only to pick up the products, with labor intensity reduced and work efficiency enhanced.

5. Special hydraulic system makes low noise possible and saves oil.  High quality and imported oil pump and other parts are available on request.

6. As the machine is controlled by.PLC with high automation degree, only one worker is required for the whole machine,so that the production efficiency can be enhanced for 3-5 times and the power can be almost 1/3 saved.




Reference Technical Data (Customizable):

Model

KT-C

KT-C

KT-C

KT-C

Maximum cutting force

25T

35T

50T

50T

Working table

1800*500mm

2000*500mm

1800*550mm

2000*550mm

Size of travel head

500*500mm

500*500mm

550*550mm

550*550mm

Adjustable stroke

5-150mm

5-150mm

5-150mm

5-150mm

Motor power

2.2kw

3kw

4.0kw

4.0kw

Machine’s dimensions(mm)

2200*620*2000

2400*620*2000

2200*620*2000

2400*620*2000

G.W

2300kg

3000kg

3500kg

4200kg



Machine photos:

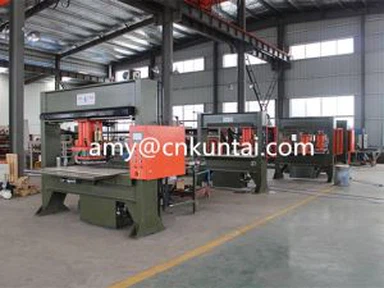

Travel Head Cutting Machine.jpg



Package and shipping:



As one of the professional manufacturers in China, Kuntai Machinery is also a leading supplier of hydraulic abrasive paper die cutting machine. Providing you with 24 hours service and free installation training service, we warmly welcome you to buy our high quality machine with high precision at competitive price.
