Simple Structure Hot Melt Glue Laminating Machine,glue Lamination Machine

LAMINATING MATERIALS: 1.Fabric + fabric:textiles, jersey, fleece, Nylon, Velvet, Terry cloth, Suede,etc. 2.Fabric + films, such as PU film, TPU film, PE film, PVC film, PTFE film,etc. 3.Fabric+ Leather/Artificial Leather,etc. 4.Fabric + Nonwoven

Product Details

Simple Structure Hot Melt Glue Laminating Machine

1. Usage:

To laminate foam with woven or non woven fabrics, knitted, natural or synthetic fabrics, velvet, plush, polar fleece, corduroy, leathter, synthetic leather, PVC, etc.


2. Application:

Automotive industry ( car interiors, car seats)
Furniture industry ( office chairs, sofas, babies items, stuffings)
Footwear industry
Garment industry
Household cleaning products -PU-fibre scourers
Heat insulation - sound absorption, etc.


3. Working Process:

  • Flame lamination is a process that adheres material to one side of the fire retardant foam or EVA.

  • Pass the foam or EVA over a flame produced by a flare roller, creating a thin layer of sticky stuff on the surface of one side of the foam or EVA.

  • Then, quickly press the material against the sticky stuff of the foam or EVA.

4. Features:
  • Gas Type: Natural Gas or Liquefied Gas.

  • The water cooling system well enhances the lamination effect.

  • The air exhaust diaphragm will exhaust the odor.

  • Fabric spreading device is installed to make the laminated material smooth and neat.

  • The strength of the bonding depends on the material and the foam or EVA selected and the processing conditions.

  • With high integrity and long term adhesive durability, the laminated materials touch well and is dry washable.

  • Edge tracker, tensionless fabric unwinding device, stamping device and other auxiliary equipment can be optionally installed.


Main technical parameters

Heat source

 industrial use of electricity

Width of roll


Width of finished product


Mechanical speed

 20 - 45m / min

Installed capacity

 about 10KVA


 13000 x 2500 x 2200mm

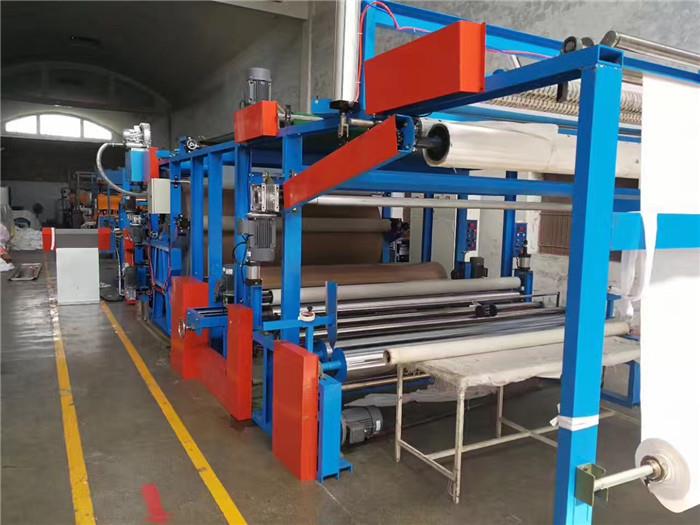

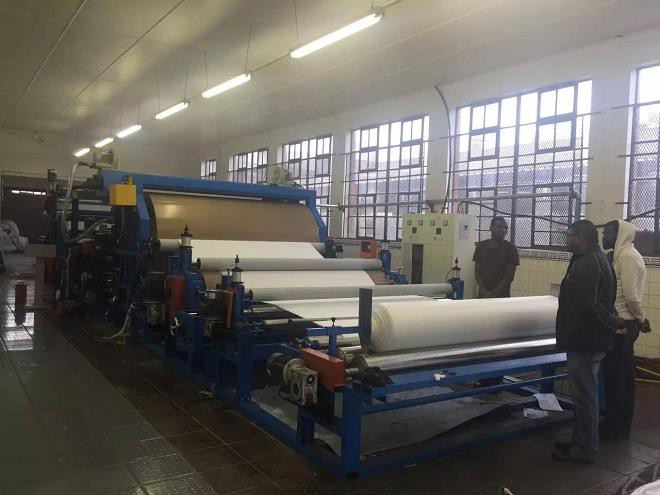

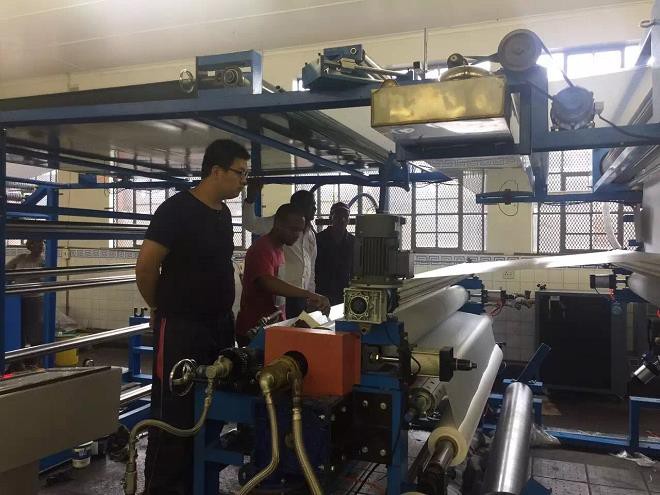

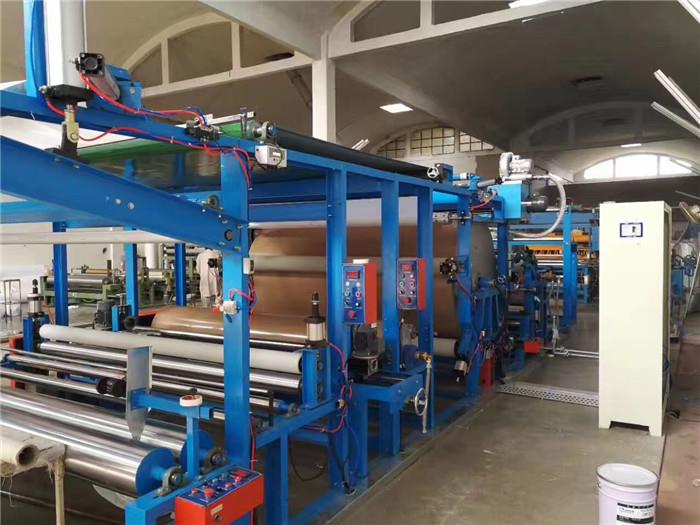

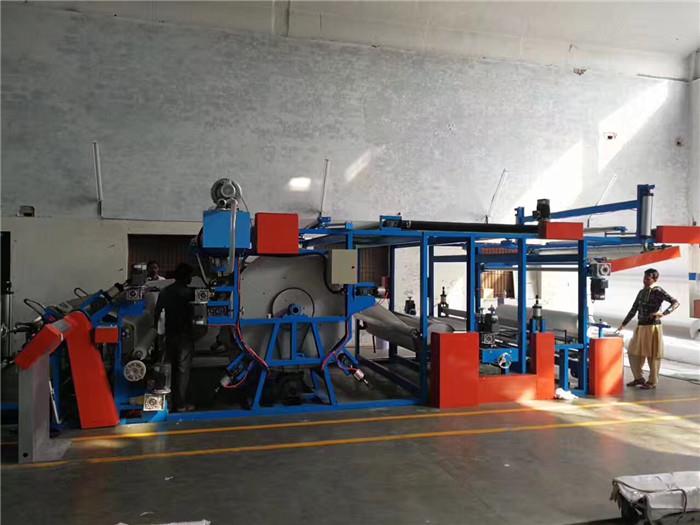

Machine photos:




Package and shipping:

Inner Package: Protective Film, etc


Outside Package: Standard Export Container


  • Machines well packed with protective film and loaded in export container;

  • English version operation manual and technical data;

  • One-Year-Period wear parts;

  • Tool kit
