Sofa Fabric Bonding Laminating Machine,lamination Machine

Specifications * Sofa Fabric/Knitted Fabric/Nonwoven fabric/Film/Leather Laminating Machine * Oil Glue / water based glue * Low glue consumption * CE Certified Application and Features 1.This kind of Sofa Fabric...

Product Details

Sofa Fabric Bonding Laminating Machine


Specifications
* Sofa Fabric/Knitted Fabric/Nonwoven fabric/Film/Leather Laminating Machine
* Oil Glue / water based glue
* Low glue consumption
* CE Certified

Application and Features
1.This kind of Sofa Fabric Laminating Machine is used for laminating knitted fabric, nonwoven, film and other materials, such as:
Knitted Fabric+ Fabric
Fabric+ Nonwoven...
Fabric+ Film (Membrane) such as PU film, TPU film, PTFE film, PE film, OPP film, BOPP film, OPP film, PVC film, etc.
Luggage materials, such as EVA, PVC...
Diving Material, such as SBR, CR...
It is widely used in garments, bag/luggage, shoe materials, sports products, medical products, dive equipment industry, and other industries.
2.Oil glue is transferred evenly to material surface via engraved roller in dot shape. Water based glue can also be used.
3.Special film unwinding device and film lining reclaimer can be installed on the upper plate, facilitating operation as well as saving space.
4.Advanced edge alignment and stretching devices, this machine increases the degree of automation, saves labor costs, relieves labor intensity, and enhances production efficiency.
5.With PU glue or solvent based glue, the laminated products have good adhesive property and touch well. They are washable and dry-cleanable. Due to the glue is in the point form when laminating, the laminated products are breathable.
6.Running speed is controlled through frequency synchronization, synchronic speed adjusting, very easy and convenient to operate
7.Efficient cooling device enhances the lamination effect.
8.Automatic Edge Trimming device will be installed. If required, automatic edge waste removing device can be added.
9.Counting device are installed.
10.For knitted fabric, the unique conveyor system is installed. 4way stretchable fabric also can be laminated.

Standard Technical Parameters (Customizable):

Model:

KT-JF/B

Material Width:

1800mm, 2000mm, According to The Maximum Material Width

Drying Roller Diameter:

1500mm

Drying Roller Width:

1800mm, 2000mm, According to The Maximum Material Width

Heating Tube Inside Drying Roller:

30 PCS x 1.5KW

Running speed:

20-40 m/min

Power:

50 KW

Net Weight:

8500 KGS

Dimension:

12800 x 2500 x 3800 mm

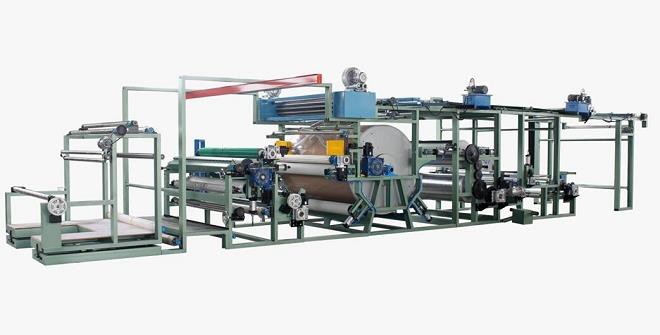

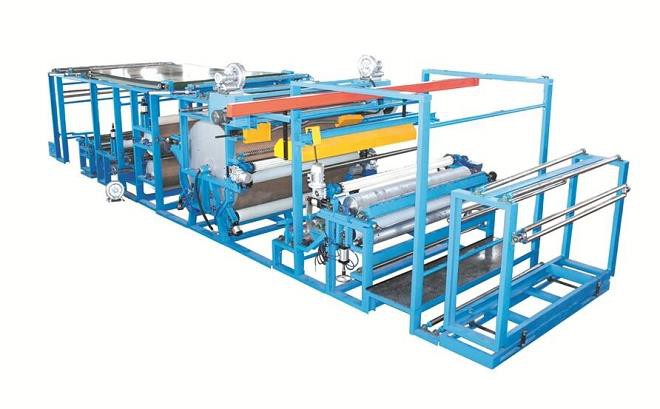

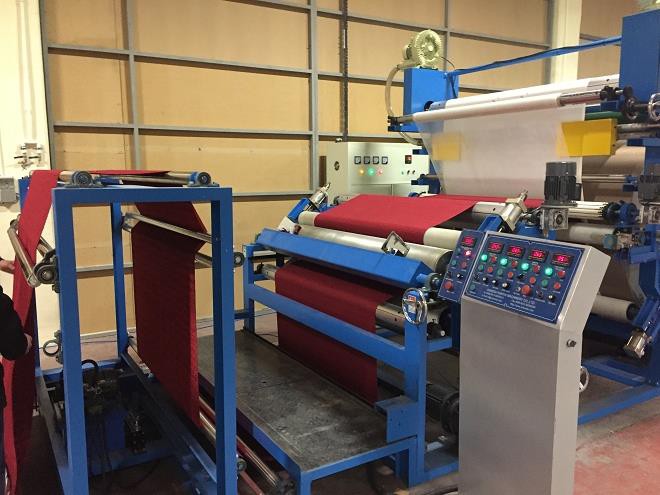

Machine photos:


全自动复合机伺服电机 (47)2.jpg






Package and shipping:


Inner Package: Protective Film, etc

Outside Package: Standard Export Container

  • Machines well packed with protective film and loaded in export container;

  • English version operation manual and technical data;

  • One-Year-Period wear parts;

  • Tool kit
