Velvet Plush Bonding Laminating Machine


Specifications
* Velvet/Woven Fabric/Nonwoven fabric/Film/Leather Laminating Machine
* Oil Glue / water based glue/flame laminating
*Low glue consumption
* CE Certified

Application and Features
1.This kind of velvet Fabric Lamination Machine is used for laminating woven fabric, nonwoven, film and other materials, such as:
Fabric+ Fabric
Fabric+ Nonwoven...
Fabric+ Film (Membrane) such as PU film, TPU film, PTFE film, PE film, OPP film, BOPP film, OPP film, PVC film, etc.
Luggage materials, such as EVA, PVC...
Diving Material, such as SBR, CR...
It is widely used in garments, bag/luggage, shoe materials, sports products, medical products, dive equipment industry, and other industries.
2.Oil glue is transferred evenly to material surface via engraved roller in dot shape. Water based glue can also be used. Or sometimes, our customers also try flame laminating machine using no glue.
3.Special film unwinding device and film lining reclaimer are installed on the upper plate, facilitating operation as well as saving space.
4.Advanced edge alignment and scothing devices, this machine increases the degree of automation, saves labor costs, relieves labor intensity, and enhances production efficiency.
5.With PU glue or solvent based glue, the laminated products have good adhesive property and touch well. They are washable and dry-cleanable. Due to the glue is in the point form when laminating, the laminated products are breathable.
6.Running speed is controlled through frequency synchronization, synchronic speed adjusting, very easy and convenient to operate
7.Efficient cooling device enhances the lamination effect.
8.Automatic Edge Trimming device will be installed. If required, automatic edge waste removing device can be added.
9.Counting device is installed.
10.Other devices are available on request.

Standard Technical Parameters (Customizable):

Model:

KT-JF/B

Material Width:

1800mm, 2000mm, According to The Maximum Material Width

Drying Roller Diameter:

1500mm

Drying Roller Width:

1800mm, 2000mm, According to The Maximum Material Width

Heating Tube Inside Drying Roller:

30 PCS x 1.5KW

Running speed:

20-40 m/min

Power:

50 KW

Net Weight:

8500 KGS

Dimension:

12800 x 2500 x 3800 mm

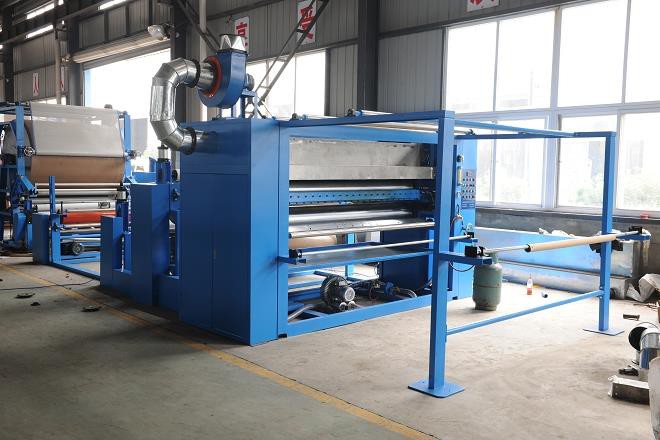

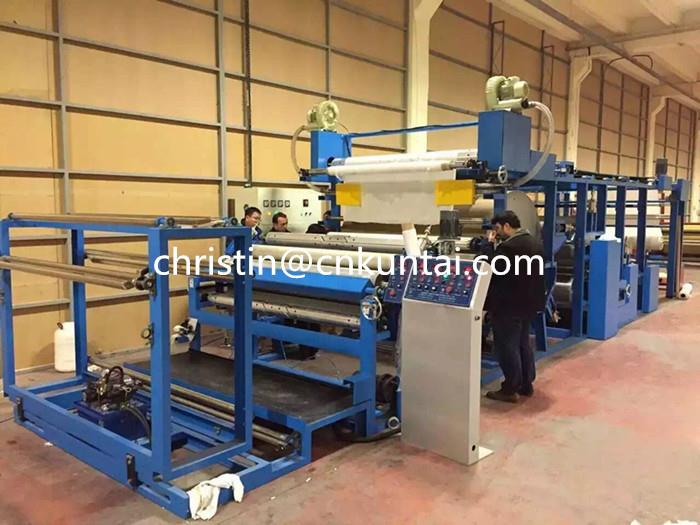

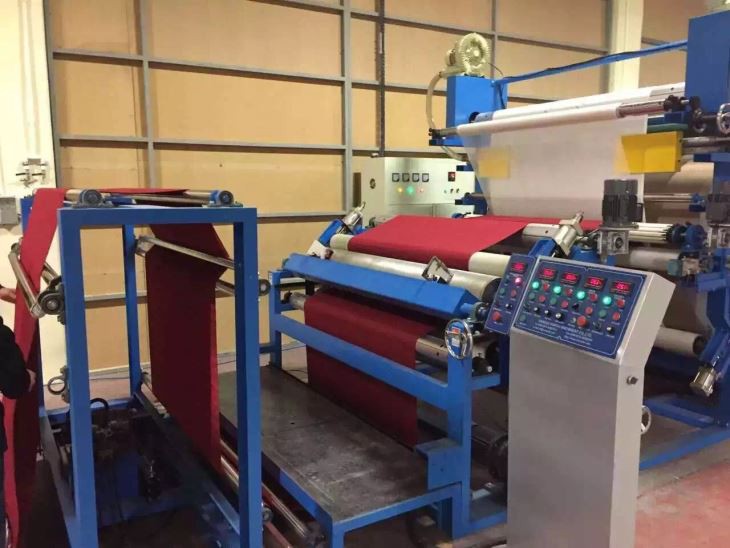

Machine photos:









Package and shipping:


Inner Package: Protective Film, etc



Outside Package: Standard Export Container



  • Machines well packed with protective film and loaded in export container;

  • English version operation manual and technical data;

  • One-Year-Period wear parts;

  • Tool kit
