Solvent Based Glue Laminating Machine, Bonding Machine,lamination Machine

Specifications * Fabric/Film/Leather Laminating Machine * Oil Glue * Low glue consumption * CE Certified Application and Features 1.This kind of Lamination Machine is used for laminating fabric, film and other materials, such as: Fabric+ Fabric Fabric+ Nonwoven...

Product Details

Specifications
* Fabric/Film/Leather Laminating Machine
* Oil Glue
* Low glue consumption
* CE Certified

Application and Features
1.This kind of Lamination Machine is used for laminating fabric, film and other materials, such as:
Fabric+ Fabric
Fabric+ Nonwoven...
Fabric+ Film (Membrane) such as PU film, TPU film, PTFE film, PE film, OPP film, BOPP film, OPP film, PVC film, etc.
Luggage materials, such as EVA, PVC...
Diving Material, such as SBR, CR...

It is widely used in garments, bag/luggage, shoe materials, sports products, medical products, dive equipment industry, and other industries.
2.Oil glue is transferred evenly to material surface via engraved roller in dot shape.
3.Special film unwinding device and film lining reclaimer are installed on the upper plate, facilitating operation as well as saving space.
4.Advanced edge alignment and scothing devices, this machine increases the degree of automation, saves labor costs, relieves labor intensity, and enhances production efficiency.
5.With PU glue or solvent based glue, the laminated products have good adhesive property and touch well. They are washable and dry-cleanable. Due to the glue is in the point form when laminating, the laminated products are breathable.
6.Running speed is controlled through frequency synchronization, synchronic speed adjusting, very easy and convenient to operate
7.Efficient cooling device enhances the lamination effect.
8.Automatic Edge Trimming device will be installed. If required, automatic edge waste removing device can be added.
9.The solvent based glue laminating machine has counting unit.

Standard Technical Parameters (Customizable):

Model:

KT-JF/B

Material Width:

1800mm, 2000mm, According to The Maximum Material Width

Drying Roller Diameter:

1500mm

Drying Roller Width:

1800mm, 2000mm, According to The Maximum Material Width

Heating Tube Inside Drying Roller:

30 PCS x 1.5KW

Running speed:

20-40 m/min

Power:

50 KW

Net Weight:

8500 KGS

Dimension:

12800 x 2500 x 3800 mm


As one of the professional manufacturers in China, Kuntai Machinery is also a leading supplier of oil glue laminating machine, bonding machine,lamination machine. Providing you with 24 hours service and free installation training service, we warmly welcome you to buy our high quality machine with high precision at competitive price.

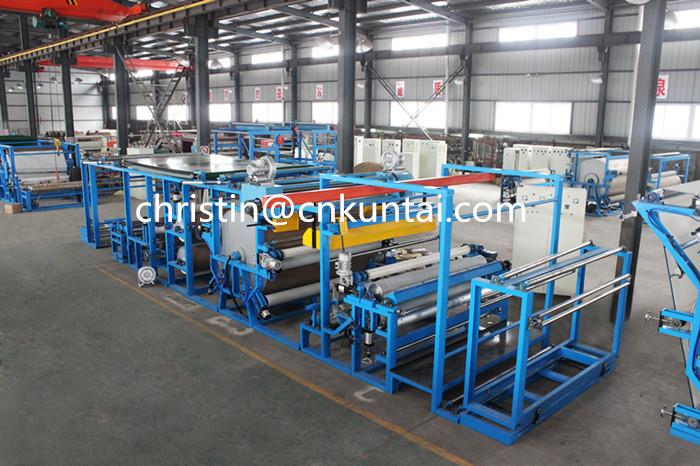

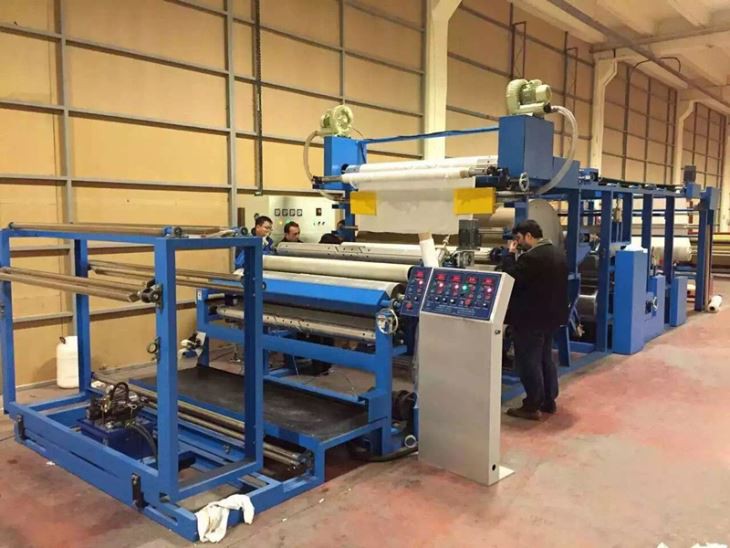

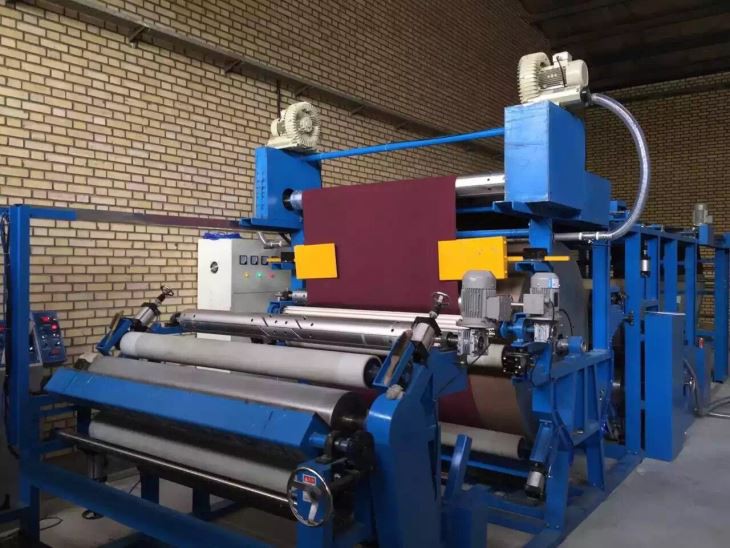

Machine photos:








Package and shipping:


Inner Package: Protective Film, etc



Outside Package: Standard plywood case

  • Machines well packed with protective film and loaded in export container;

  • English version operation manual and technical data;

  • One-Year-Period wear parts;

  • Tool kit
