Garmrnt material Laminating Machine,bonding Machine,lamination Machine

Usage This Super Glue Laminating Machine is used for gluing and laminating of sponge, fabric, artifical leather, nonwoven colth and etc. It is widly used in making shoe insoles, bags, traveling cases, diving clothes and so on.

Product Details

Garmrnt material lamination machine


Specifications



* Fabric/Film Laminating Machine
* Solvent Based Glue
* Low glue consumption
* Automatic Laminating
* CE Certified



Application and Features

1. This solvent based Laminating Machine is used for gluing fabric, film and other materials, such as:

    Fabric+ Fabric

    Fabric+ Nonwoven...

    Fabric+ Breathable Film (Membrane) such as PU film, TPU film, PTFE film, PE film, OPP film, BOPP film, OPP film, PVC film, etc.

    Luggage materials, such as EVA, PVC...

    Diving Material, such as SBR, CR...

It is widely used in garments, bag/luggage, shoe materials, sports products, medical products, dive equipment industry, and other industries.

2. Solvent Based glue is transferred evenly to material surface via engraved roller in dot shape.

3. Special film unwinding device and film lining reclaimer are installed on the upper plate, facilitating operation as well as saving space.

4.  Advanced edge alignment and scothing devices, this machine increases the degree of automation, saves labor costs, relieves labor intensity, and enhances production efficiency.

5. With PU glue or solvent based glue, the laminated products have good adhesive property and touch well. They are washable and dry-cleanable. Due to the glue is in the point form when laminating, the laminated products are breathable.

6. Running speed is controlled through frequency synchronization, synchronic speed adjusting, very easy and convenient to operate

7. Efficient cooling device enhances the lamination effect.

8.Automatic Edge Trimming device will be installed. If required, automatic edge waste removing device can be added.

9. The fabric laminating machine has counting unit.

10. The product is breathable and waterproof.



Standard Technical Parameters (Customizable):

Model:KT-JF/B
Material Width:1800mm, 2000mm, According to The Maximum Material
Drying Roller Diameter:  1500mm
Drying Roller Width:1800mm, 2000mm, According to The Maximum Material
Heating Tube Inside Drying Roller:  30 PCS x 1.5KW
Running speed:  20-40 m/min
Power:  50 KW
Net Weight:  8500 KGS
Dimension:  12800 x 2500 x 3800 mm

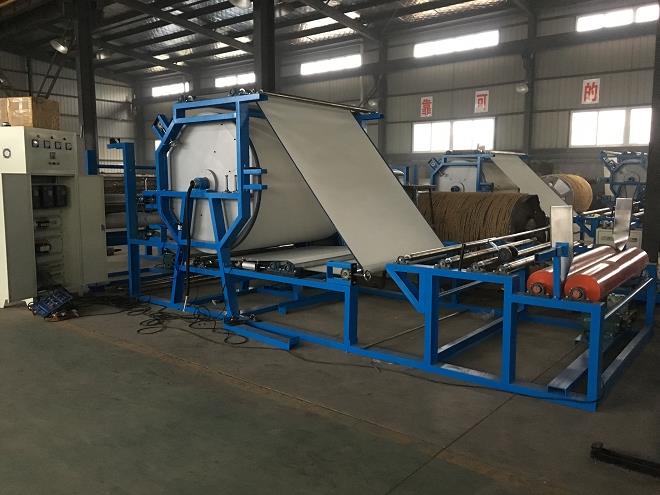

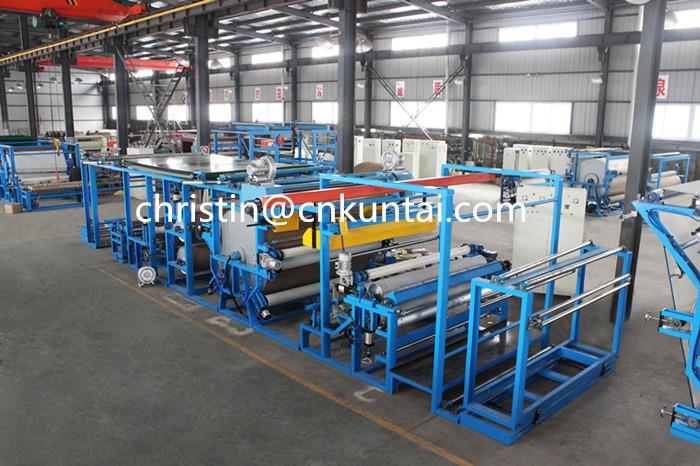

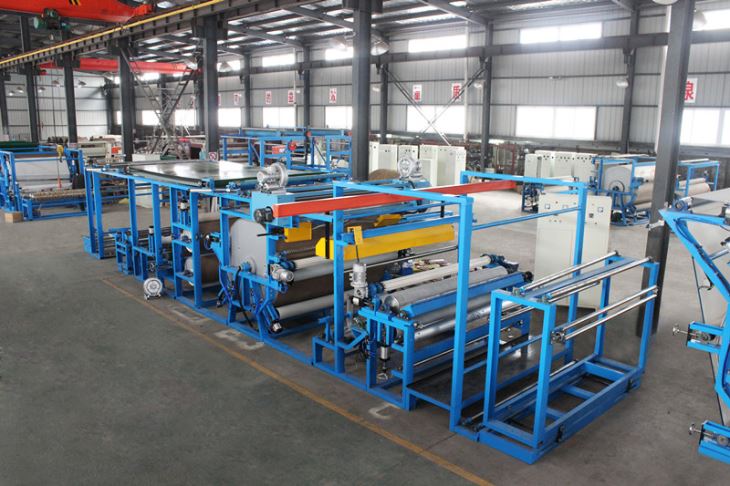

Machine photos:

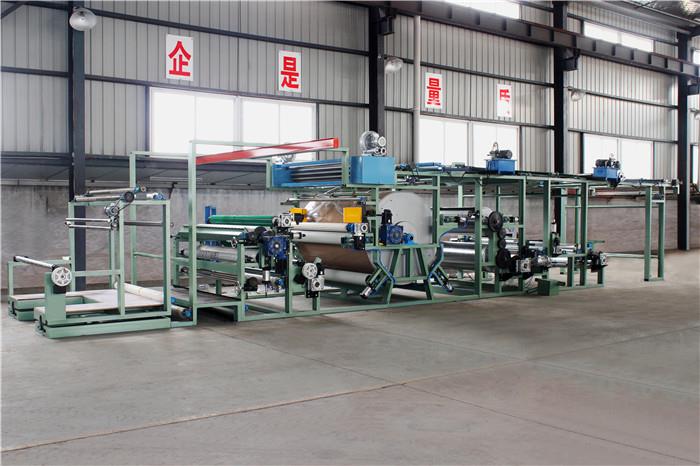

全自动复合机伺服电机 (47)2.jpg
