Horizontal Mesh Belt Lamination Machine, Laminating Machine

1)This Laminating Machine is used for: a.Gluing material and laminating with other materials, suitable for laminating cloth, EVA, sponge, non-woven, plastic, leather, synthetic leather, etc.

Product Details

Horizontal Mesh Belt Lamination Machine



1)This Laminating Machine is used for:
a.Gluing material and laminating with other materials, suitable for laminating cloth, EVA, sponge, non-woven, plastic, leather, synthetic leather, etc.
b.Widely used in cloth, shoemaking, luggage, interior decoration, car interiors, toy and other industries.

2)Laminating Machine Features:
a.It uses water-based glue.
b.Improve the quality of the products greatly, save cost.
c.Horizontal Mesh Belt structure, low breakdown rate and long service time.
d.It adopts high temperature resistant pressing mesh to make the laminated material more firm and flat, increasing the bonding effect.
e.Special antirust Teflon paper protects the laminated material when the temperature of the heating drying roller is very high.
f.All the heating pipes in the drying roller are made of stainless steel and the temperature of the heating drying roller can be as high as 160 celcius degree, and even 200 celcius degree.
g.There is a glue scraping blade to scrape the glue evenly onto fabric and the unique glue channel design facilitates the cleaning of the glue after lamination.
h.The material feeding roller is moved by air cylinder, realizing more rapid, convenient and precise process.
i.Counting device and rewinding device are installed on the machine.


3)Specification (Customizable):


Width of fabric

1600mm,1800mm,2000mm according to customers' requirement

Machine Roller Surface

1800mm,2000mm,2200mm according to customers' requirement

Machine Speed

20-45m per min

Heating system

heating pipes inside

Driven Type

Electric

Machine Heating Power

45kw

Machine Drive Powder

4.5kw

Diameter of drying roller

1.2m, 1.5m

Voltage

Customizable

Estimated Machine Dimension

6600mm x 2300mm x2700mm

Estimated Machine Weight

4500kg

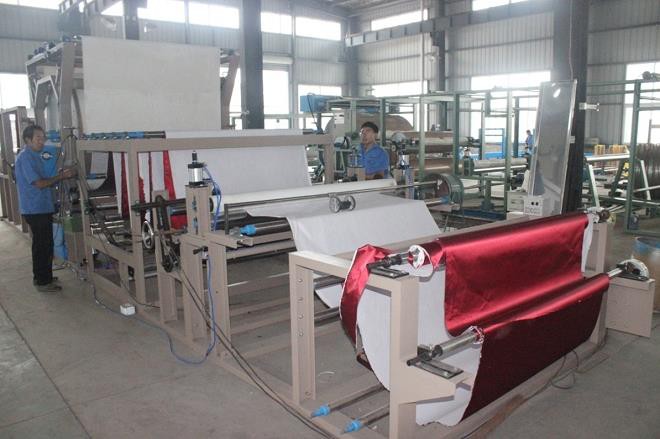

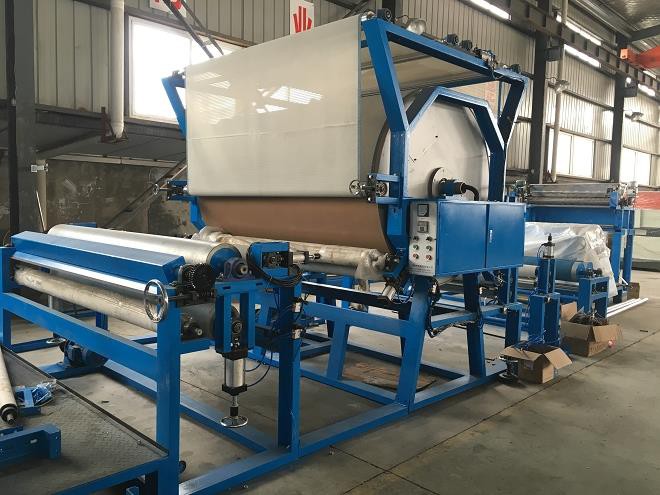

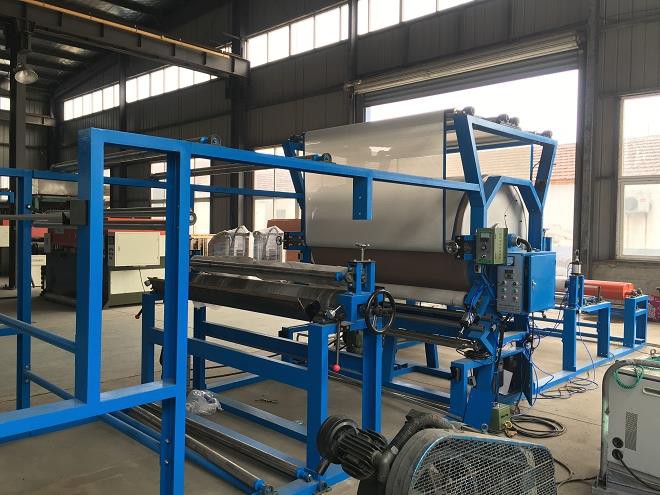

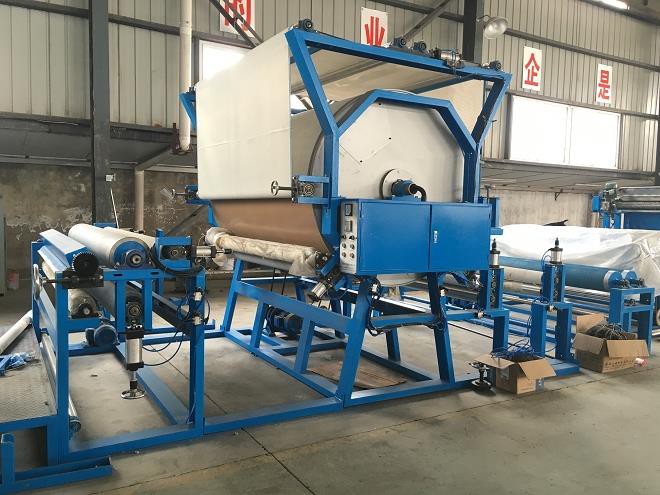

Machine photos:


latex glue lamination machine.JPG


Package and shipping:


Inner Package: Protective Film, etc



Outside Package: Standard Export Container



  • Machines well packed with protective film and loaded in export container;

  • English version operation manual and technical data;

  • One-Year-Period wear parts;

  • Tool kit
