Automatic Travel Head Cutting Machine
1.function of the machine is to cut materials into different shapes
2.Machine working table is customized
3.Machine cutting pressure is from 25ton to 60ton
4.Machine is continuously cutting non-metal materials(such as leather, rubber and cloth) in large batch with the help of molding cutting die. It is most suitable for soft material cutting, such as fabric, film, felt, nonwoven, etc.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Automatic Football Die Cutting Machine
Travel Head Clicking Cutting Machine for Artificial Flower
Shoemaking Machine in Footwear Industry
Brazil Football Cutting Machine
Health Care Material Cutting Press
Automatic Fiberglass Die Cutting Machine with Conveyor Belt
Product Description

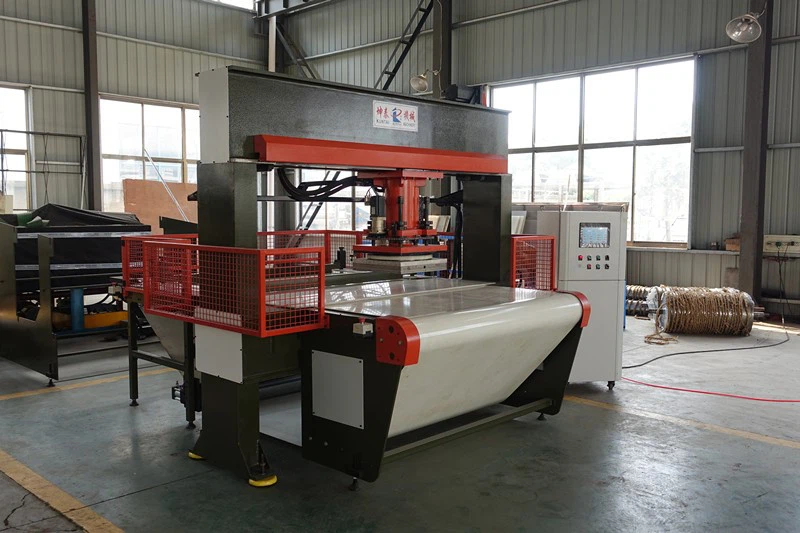

Automatic travel head cutting machine
Characteristics
1. This type of cutting machines are widely used for cutting applications of nonmetal materials. Such products as sandpaper products, artificial flower, insoles, football, volleyball or tennis panels, car interior decoration materials and medical supplies are made by this machine.
2. Servo motor makes accurate feeding possible and controls horizontal movement of the cutting head.
3. The feeding length can be easily set by the human-computer interface or PLC control panel (Optional).
4. Special hydraulic system makes low noise possible and saves oil.
5. High quality and imported oil pump and other parts are available on request.
6. Maximum cutting force of the die cutting machine caters to customer's specific application requirements.
7. Rotary head can be installed on request.
Key Points:
Conveyor Belt: Germany or Switzerland Made or Customizable
Oil Pump: Germany Made or Customizable
Special Hydraulic System lowers the operation noise
Sealing Ring: Made in Italy
Press Switch: Made in Italy
Cutting Switch: Made in Germany
Reference Technical Data (Customizable)
Model | Hydraulic Travel Head Die Cutting Machine | |||||
Maximum Cutting Force (ton) | 25 | 30 | 40 | 50 | 55 | 60 |
Working Table (mm) | 1600*500 | 1800*500 | 2000*500 | 1600*500 | 1800*500 | 2000*500 |
Travel Head Size (mm) | 500*500 | 500*500 | 500*500 | 550*550 | 550*550 | 550*550 |
Adjustable Stroke (mm) | 5-150 | 5-150 | 5-150 | 5-150 | 5-150 | 5-150 |
Motor Power (kw) | 2.2 | 2.2 | 2.2 | 4.0 | 4.0 | 4.0 |
Estimated Machine Dimension (mm) | 2200*720*2000 | 2400*720*2000 | 2600*720*2000 | 2200*720*2000 | 2400*720*2000 | 2600*720*2000 |
Estimated G.W (kg) | 1800 | 2100 | 3000 | 3000 | 3800 |
4500 |
Usage and Characteristics

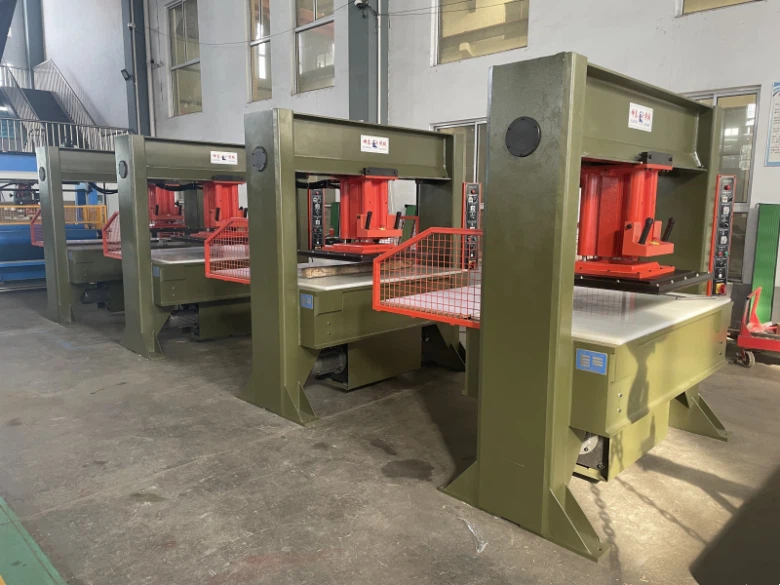

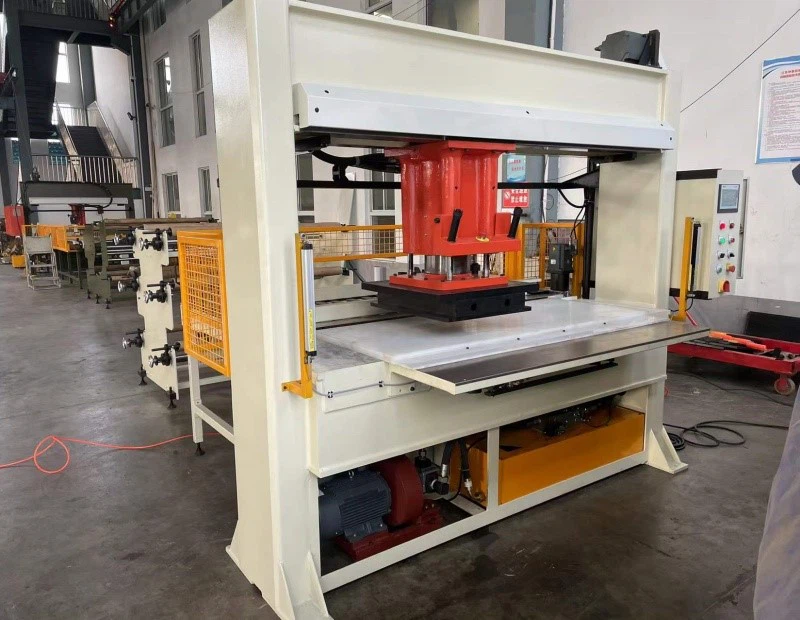

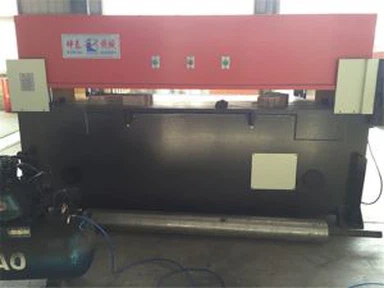

Other type of travel head cutting machines
Packaging & Shipping for Travel Head Cutting Machine:
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
