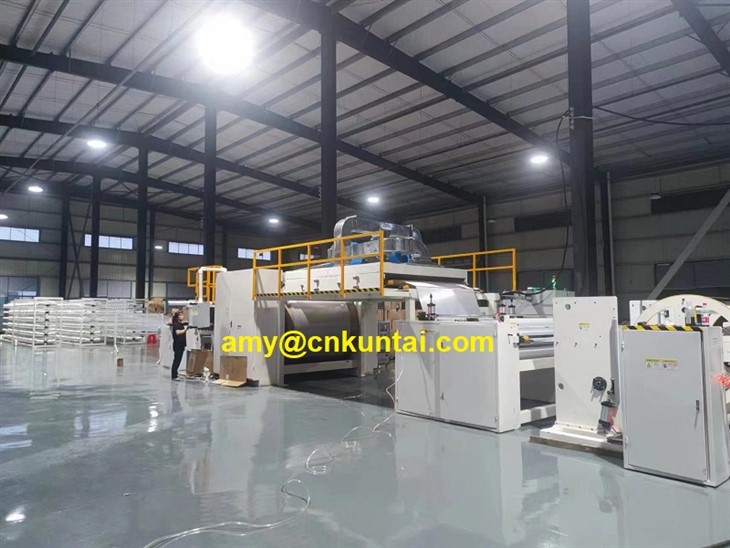

UD Prepregs Impregnation Machine
This Lamination Machine is used for laminating Kevlar fabric/UD fabric. The machine is equipped with automatic collection, unwinding, film release, film collection, automatic correction, composite drying, water cooling, automatic cutting edge and other units. Composite material with a uniform coating, compound formation, no tensile deformation, no blistering, no wrinkles, soft, excellent air permeability, winding neat and so on.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
UD Non-Weft Fabric Production Line
UHMWPE FABRIC PRODUCTION LINE
UD Prepregs Thermoplastic Impregnation Laminating Machine for Impregnation of Fiber and Fabric
UD Prepregs Impregnation Machine
PRODUCTION INFORMATION:
UD weft cloth production line adopts stable mechanical rolling parts and special ultrahigh pressure device to evenly spread wire, impregnated with resin glue, and then laminated by 0/90º orthogonal composite at the end.
1. The UD non-weft fabric production line adopts stable mechanical operation rollers and special-shaped devices to spread the yarn evenly, impregnate with resin glue and lamination with the carrier PE film, dry and solidify, and then go through the 0/90º orthogonal lamination in the back. The product has excellent properties such as low density, abrasion resistance, impact resistance, and strong cutting resistance. The product is widely used in special protective materials, and stab-proof and cut-proof clothing. Lining and special public anti-riot facilities, etc.
2. The equipment uses water-based or oil-based resin adhesives to produce PEUD non-weft fabrics.
3. Adopt HMI+PLC control system, easy operation, high production efficiency, and reduce the tedious operation.
4. The mirror surface processing rollers are used for thread pulling and thread laying to ensure that the damage to the fiber performance is reduced to the greatest extent during the operation.
5. The whole machine adopts gear transmission, which has strong torque transmission and stability.
STANDARD TECKNICAL PARAMETERS
| Model: | KT-1800 |
| Maximum Material Width: | 1600mm |
| Machine Roller Width: | 1800mm |
| Machine speed: | 5-30m/min |
| Power: | 180KW |
| Electric Current and Voltage: | Customizable |
| Net Weight: | 9000KGS |
| Dimension: | 6000*2000*1250mm |
PICTURE:
Why choose us:
1,Historical precipitation technological innovation.
32 years of rich experience for various industries to provide composite cutting equipment, fabric stamping equipment and other industry solutions.
2,Globalization after sales
Covering 5 continents with over 60 countries complete after sales service, no matter where you are, kuntai's service time is at your side?
3,Industry-specific customization
A strong team of engineers will make the best one-to-one customization for your product requirements to maximize the advantages of your product equipment.
4,Strong technical support.
The technical support of southeast university, the practice training of German engineers, and the team of dozens of experts are the technical guarantee for you to purchase the machine in kuntai.
5,High quality standards.
The IOS system certification, the eu CE certification and the us UL certification are the quality assurance for us. CTPM refined management is our guideline for high quality standards.
