Hot Melt Laminating Machine
1.function of the machine is to laminate 2 layers materials with adhesive
2.Working width range is 1000-3600mm
3.Laminating speed: 10-35m/min
4.Laminated materials:
Fabric + fabric:textiles, jersey, fleece, Nylon, Velvet, Terry cloth, Suede,etc.
Fabric + films, such as PU film, TPU film, PE film, PVC film, PTFE film,etc.
Fabric+ Leather/Artificial Leather,etc.
Fabric + Nonwoven
Diving fabric
Sponge/ Foam.
Plastics
EVA+PVC
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Hot Melt Laminating Coating Machine for :
1. EVA + PVC, PU or Artificial Leather
2. EVA + Fabric (for shoe materials, etc)
3. Neoprene + Fabric (for diving suit, etc)
4. PU Foam + Fabric (for bra, vehicle cushion, etc)
5. TPU Film + Fabric. (for climbing clothing, camouflage uniform, mattress protector, packaging materials, etc)
6. Fabric + Fabric. (for clothing, medical supplies, sofa fabric, etc)
Key Features
Applicable to Polyurethane Reactive Hot Melt Adhesives, solventless lamination, environmental friendly, no pollution during the whole process of laminating.
Solventless Laminating, materials are firmly bonded, soft and comfortable handle, washable.
Machine is controlled by the PLC (Programmable Logic Controller) system with touch screen, modular designed structure, HMI (Human Machine Interface) control system makes operating easy and simple.
Equipped with thermal conductive oil heating system.
Excellent synchronization performance.
Non-tension unwinding unit makes laminating materials smooth and even, and good bonding strength.
Expander roller also makes laminating materials smooth and even, especially for elastic materials.
Precise infrared centering unit ensures edge alignment during laminating.
Modern designed gluing system ensures the accuracy of the adhesive amount.
Professionally designed and finely processed hot melt adhesive melter, synchronized by PLC system.
Equipped with pneumatic expanding shaft for convenient operation.
Machine photo
Technical Parameter
Model: KT-PUR
Maximum Material Width: 1600-3400mm
Machine Roller Width:1800-3600mm
Gluing Amount: 5-80g/m2
Machine speed: 10-40m/min
Power: 65KW
Electric Current and Voltage: Customizable
Net Weight: 12500KGS
Dimension: 11800 x 2900 x 3600mm

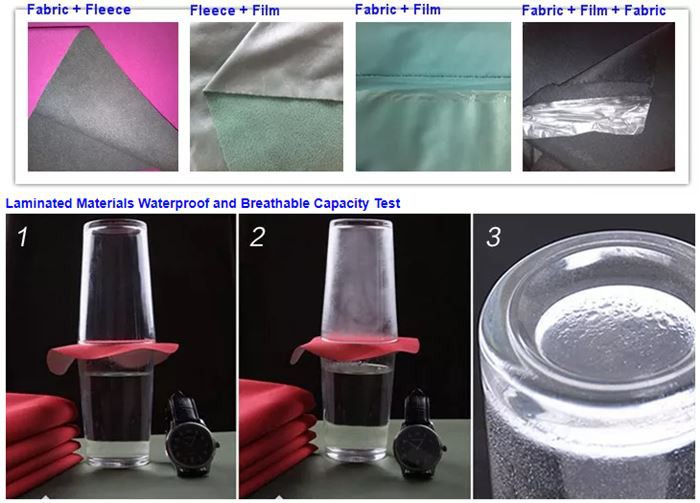

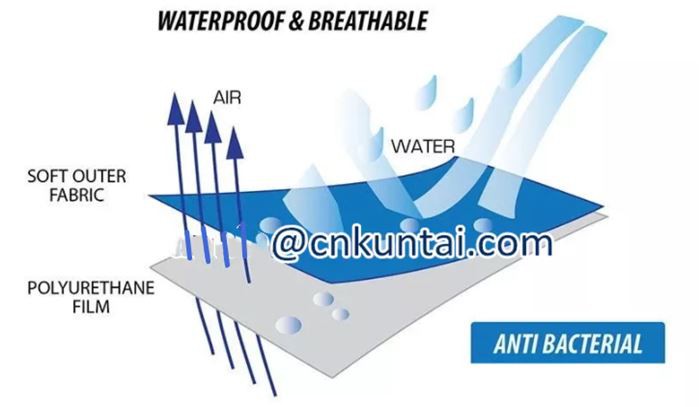

Application
Company profile
About Kuntai:
Since 1985, we have been manufacturing various cutting machines and coating lamination machines for different industries, such as packaging industry, car trim industry, footwear industry, garment industry, toys industry, upholstery industry and so on. Strong engineering power and satisfactory aftersales service consolidate our leading place in both domestic market and overseas market.
Other machines from Kuntai
Laminating machine

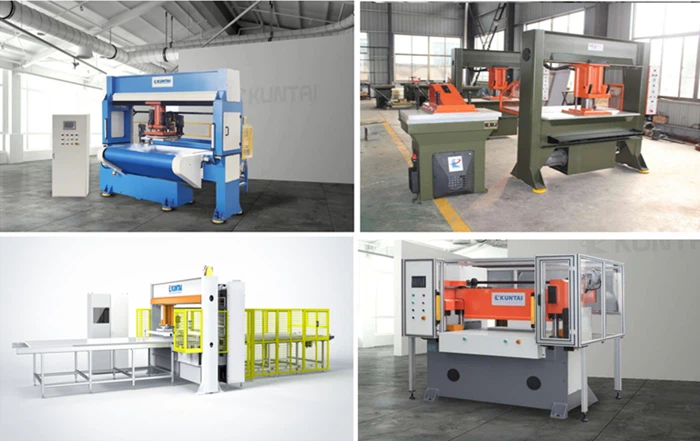

Cutting machine
