Mattress Protector TPU Film PUR Laminating Coating machine
1.function of the machine is to laminate 2 layers materials with hot melt adhesive
2.Working width range is 1000-3600mm
3.Laminating speed: 10-35m/min
4.Laminated materials:
Fabric + fabric:textiles, jersey, fleece, Nylon, Velvet, Terry cloth, Suede,etc.
Fabric + films, such as PU film, TPU film, PE film, PVC film, PTFE film,etc.
Fabric+ Leather/Artificial Leather,etc.
Fabric + Nonwoven
Diving fabric
Sponge/ Foam.
Plastics
EVA+PVC
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Mattress Protector TPU Film PUR Laminating Coating machine
Product description
Product Introduction:
The most advanced hot melt adhesive, moisture reactive hot melt glue (PUR & TPU), is highly adhesive and environmentally friendly. It can be used for lamination of 99.9% textiles. The laminated material is soft and high temperature resistant. After moisture reaction, the material will not be easily affected by the temperature. Besides, with lasting elasticity, the laminated material is wear resistant, oil resistant and ag-ing resistant. Especially, mist performance, neutral color and other various features of PUR makes medical industry application possible.
When PTFE, PE, TPU and other functional waterproof and breathable films are used in laminating, water-proof and heat preserving, waterproof and protective, oil & water & gas filteration and many other different
Mattress Protector TPU Film PUR Laminating Coating machine is mainly consisted of fabric rewinding and unwinding units, fabric and film transmission systems and tension controller, film unwinding and lining or film carrier rewinding device, hot melt glue melting unit (optional), pump (optional), conduction oil source system (optional), glue dot transfer unit, laminating device, cooling device, PLC and other devices. It is compact, highly automatic and easy to maintain. We make all types of machine designs as per specific application requirements.
Option:
Features and Advantages:
2. Uniformly gluing/coating of hot melt glue onto textiles, nonwoven materials, foam, film/membrane, etc.
3. Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.
4. Gluing gap and lamination gap can be precisely adjusted.
5. Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.
6. Famous brand motors, electrical parts,and inverters can be used for stable machine performance
7. Good tension control makes laminated materials smooth and flat, guaranteeing good bonding effect.
8. Various fabric and film openers feed materials smoothly and flatly.
9. For different fabric, different fabric conveyor and expanding devices are available for choice.
10. Low maintenance cost and less running noise.
11. When it is applied in lamination of functional waterproof moisture permeable films such as PTFE, PE and TPU, more materials which are waterproofing and insulated, waterproof and protective will even be invented.
12. For different application, different rewinding devices are available for choice.
Scope of application
APPLICATION:

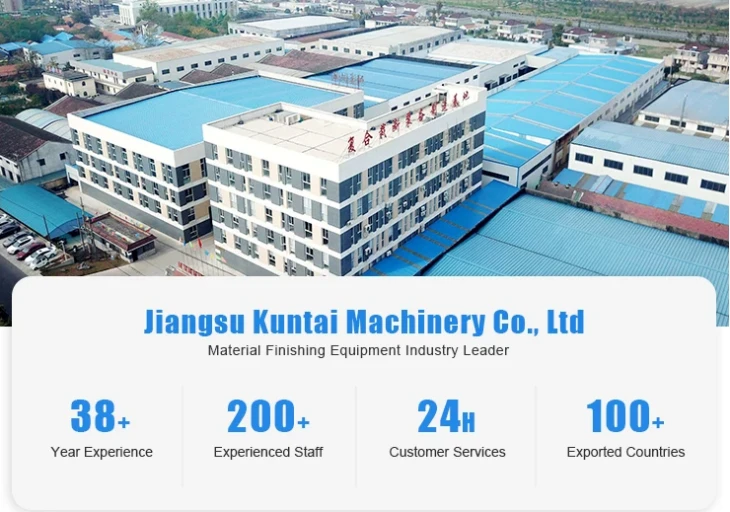

Company profile
