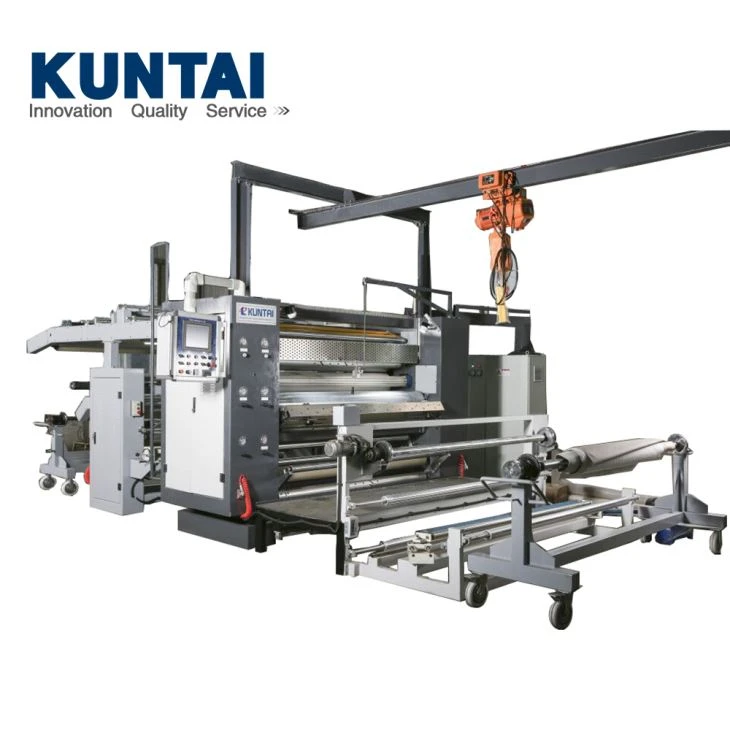

Curtain Fabric Hot Melt Glue Laminating Machine
1.function of the machine is to laminate 2 layers materials with hot melt adhesive
2.Working width range is 1000-3600mm
3.Laminating speed: 10-35m/min
4.Laminated materials:
Fabric + fabric:textiles, jersey, fleece, Nylon, Velvet, Terry cloth, Suede,etc.
Fabric + films, such as PU film, TPU film, PE film, PVC film, PTFE film,etc.
Fabric+ Leather/Artificial Leather,etc.
Fabric + Nonwoven
Diving fabric
Sponge/ Foam.
Plastics
EVA+PVC
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Curtain Fabric Hot Melt Glue Laminating Machine
Hot Melt Glue Laminating Coating Machine for :
1. EVA + PVC, PU or Artificial Leather
2. EVA + Fabric (for shoe materials, etc)
3. Neoprene + Fabric (for diving suit, etc)
4. PU Foam + Fabric (for bra, vehicle cushion, etc)
5. TPU Film + Fabric. (for climbing clothing, camouflage uniform, mattress protector, packaging materials, etc)
6. Fabric + Fabric. (for clothing, medical supplies, sofa fabric, etc)
Hot Melt Adhesive:
In industrial use, hot melt adhesives provide several advantages over solventbased adhesives. Volatile organic compounds are reduced or eliminated, and the drying or
curing step is eliminated. Hot melt adhesives have long shelf life and usually can be disposed of without special precautions.
The most advanced hot melt adhesive, moisture reactive hot melt glue (PUR & TPU), is highly adhesive and environmentally friendly. It can be used for lamination of 99.9% textiles. The laminated material is soft and high temperature resistant. After moisture reaction, the material will not be easily affected by the temperature. Besides, with
lasting elasticity, the laminated material is wear resistant, oil resistant and aging resistant. Especially, mist performance, neutral color and other various features of PUR makes medi cal industry application possible.
Curtain Fabric Lamination:
When PTFE, PE, TPU and other functional waterproof and breathable films are used in laminating, waterproof and heat preserving, waterproof and protective, oil &
water & gas filteration and many other different new materials will be created. The demands of garment industry, motor manufacturing, medical industry, environment
protection industry will be met.
Our curtain fabric hot melt glue laminating machine is mainly consisted of fabric rewinding and unwinding units, fabric and film transmission systems and tension controller, film unwinding and lining or film carrier rewinding device, hot melt glue melting unit (optional), pump (optional), conduction oil source system (optional), glue dot transfer unit, laminating device, cooling device, PLC and other devices. It is compact, highly automatic and easy to maintain.
OPTION:
1. Accumulators for foam, textile, backlining, etc
2. Edge cutting device
3. Inspection machine
4. Swaying device to sway the final laminated materials into piles
5. Cutting machine
Standard Technical Parameters (Customizable):
| Model: | KT-PUR-1800 |
| Maximum Material Width: | 1600mm |
| Machine Roller Width: | 1800mm |
| Gluing Amount: | 5-80g/m2 |
| Machine Speed: | 10-50 m/min |
| Power: | 55.0 KW |
| Electric Current and Voltage: | Customizable |
| Estimated Net Weight: | 11500 KGS |
| Estimated Dimension: | 11800 x 3400 x 3800 mm |

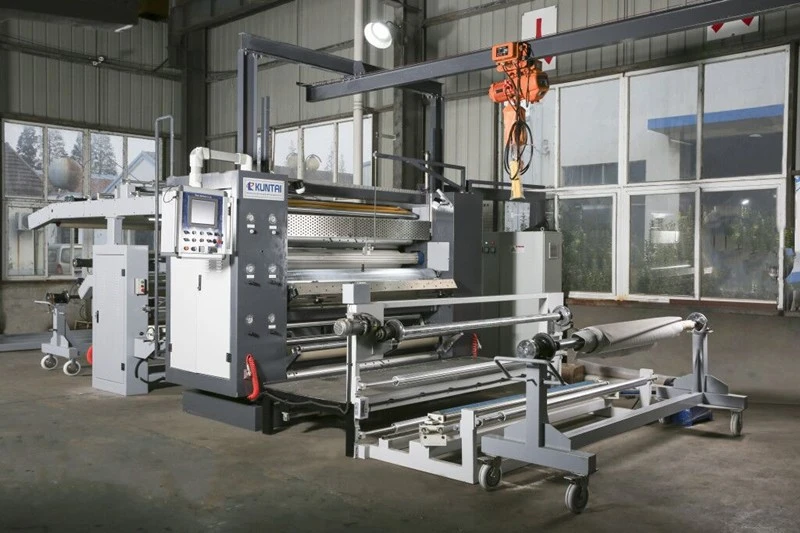

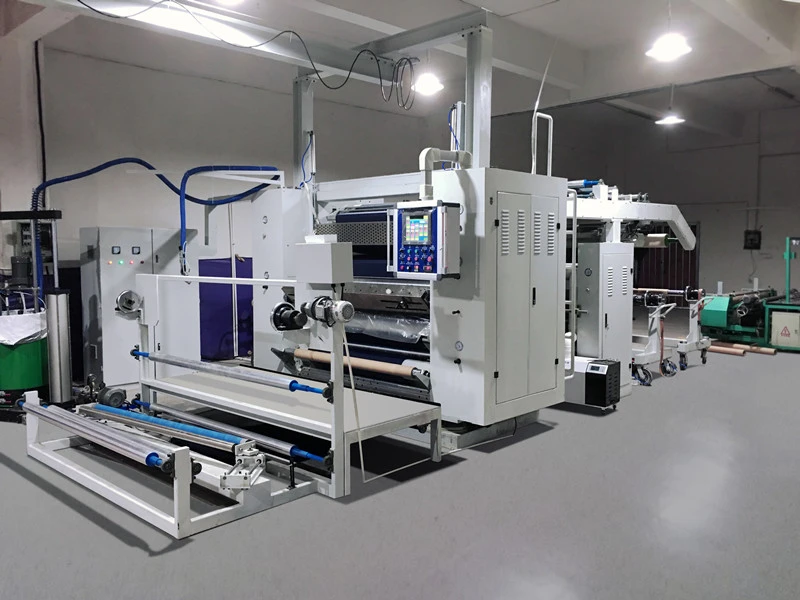

hot melt glue laminating machine photos
Key Features:
- Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.
- With this type of laminating machine, materials are firmly bonded and products are soft, comfortable, washable and breathable.
- Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.
- Famous brand motors and inverters can be installed for stable machine performance.
- Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.
- Fabric and film openers also makes materials feed smoothly and flatly.
- For 4-way strechable fabrics, special fabric transmission/conveyor system can be installed on the laminating machine.
- Parallel centering unit makes sure the materials feed in order.
- Specially designed gluing system well controls the adhesive amount and guarantees precision.
- For the hot melt adhesive melter, temperature control is accurate and stable.
- Final laminated materials can be rewinded into small rolls or large rolls.
- Low maintenance cost and less running noise.
- Advanced technology, secure quality control and satisfactory aftersales service make our lamination machines the first choice for customers both domestically and internationally.
PUR hot melt glue laminating machine package and shipment
PUR hot melt glue laminating machine oversea service:
