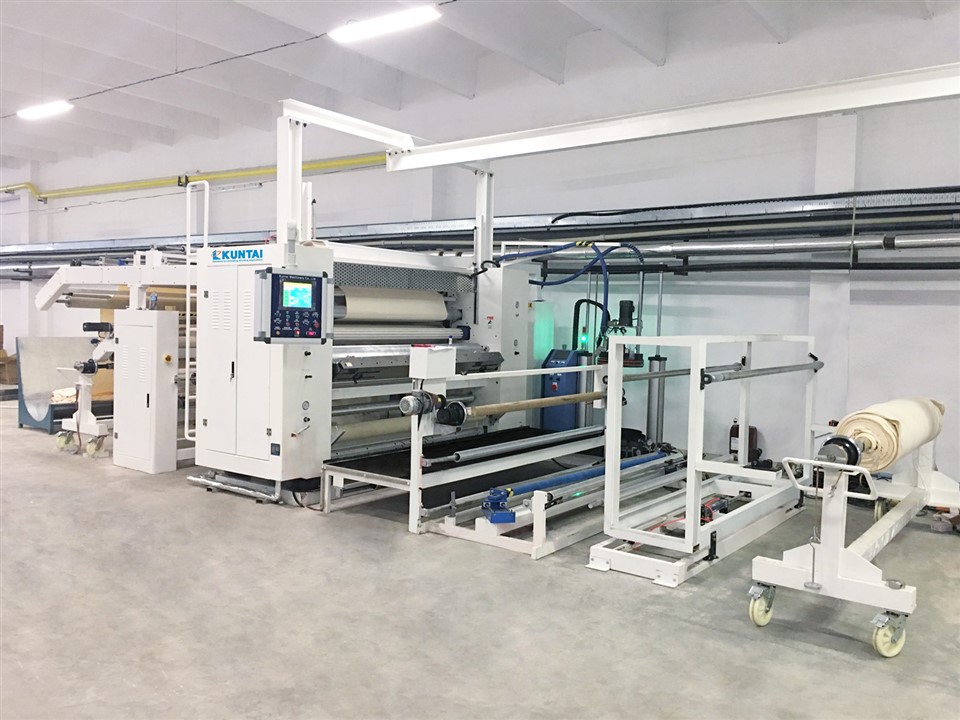

Hotmelt Lamination Machine

Hot melt laminating machine model: KT-PUR





Working principle of hotmelt laminating machine:

Negative blade position for hot melt glue for dot coating with gravure roller.







Application:

Hotmelt Laminating Machine for:

1. TPU Film + Fabric. (for blackout, mattress protector, jacket, packaging materials, etc)

2. Fabric + Fabric. (for garment, automotive, sofa fabric, etc)

3. EVA + Fabric (for shoe materials, etc)

4. PU Foam + Fabric (for bra, vehicle cushion, etc)











Key Features:

• 1. Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.
• 2. With this type of laminating machine, materials are firmly bonded and products are soft, comfortable, washable and breathable.
• 3. Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.
• 4. Famous brand motors and inverters can be installed for stable machine performance.
• 5. Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.
• 6. Fabric and film openers also makes materials feed smoothly and flatly.
• 7. For 4-way strechable fabrics, special fabric transmission/conveyor system can be installed on the laminating machine.
• 8. Parallel centering unit makes sure the materials feed in order.
• 9. Specially designed gluing system well controls the adhesive amount and guarantees precision.
• 10. For the hot melt adhesive melter, temperature control is accurate and stable.
• 11. Final laminated materials can be rewinded into small rolls or large rolls.
• 12. Low maintenance cost and less running noise.
•





Hotmelt laminating machine configuration:





No.	Main Parts	Detailed Specifications
1	Feeding & unwinding device	1) Feeding & rolling trolley frame: A-frame, total 4 sets. 2) A Material feeding device: two-roller cylinder side to side group, 2 pcs plate guide rollers. 3) Operating table: operating foot pedal and film winding torque motor mechanism group and 3pcs electroplating guide rollers. 4) Film feeding: film deliver frame with air shaft. 5) Tension control group: aluminum tension dancing rollers, equipped with precision pneumatic piping component group. 6) B Material feeding device: rubber transmission roller *2HP variable frequency drive double cylinder opposite side group, 3 pcs plating guide rollers. 7) Fabric opening roller before gluing. 8) Fabric opening roller before laminating: A material is applied to the front strip fabric opening roller and 0.5HP frequency conversion drive and B material is applied to the front aluminum fabric opening roller.
2	Gluing device	1) Gluing unit: φ250 gluing gravure roller, 2HP frequency conversion, main speed control drive chain gear and rotary joint and bearing, gluing blade, pneumatic lifting mechanism device and rubber pressing roller. 2) Gluing roller change crane: Single-track 1000KG lifting crane for the gluing roller replacement.
3	Laminating device	1) Laminating unit: φ250 laminated steel rollers. 2) Cooling set: φ250 cooling rollers * 2 sets with joints and bearings.
4	Winding device	Feeding device: one set of winder for big roll. Tension device before winding: tension device equipped with precision pneumatic edge alignment device, aluminum fabric opening roller before winding. Surface winding device.
5	Electronic control system	Touch screen with Mitsubishi brand. And language is customized. PLC controller with Mitsubishi brand. Frequency converter with YASKAWA brand: The whole machine is operated synchronously and centrally controlled by the inverter. The operation is simple and convenient, and the performance is reliable. Motor reducer with Siemens brand. Electric with Schneider brand. Pneumatic components brand with Taiwan Yadeke brand. System control: all parameters are set and displayed on the touch screen. The main central control cabinet is located in the center of the machine, with an operating display and buttons at the winding. Control cable: anti-interference cable, connector with label, cable box, neatly arranged for easy maintenance.
6	Mechanical racks	Steel plate: GB-45. Profile: GB channel steel, GB square tube steel. Column: 120*120*6 square tube, stable and anti-seismic. Beam: 120*120*6 square tube, stable and anti-seismic. Structure: machine main part use 35mm thickness plate. Guide roller: aluminum alloy, by anti-oxidation treatment, anti-scratch and scratch treatment.
