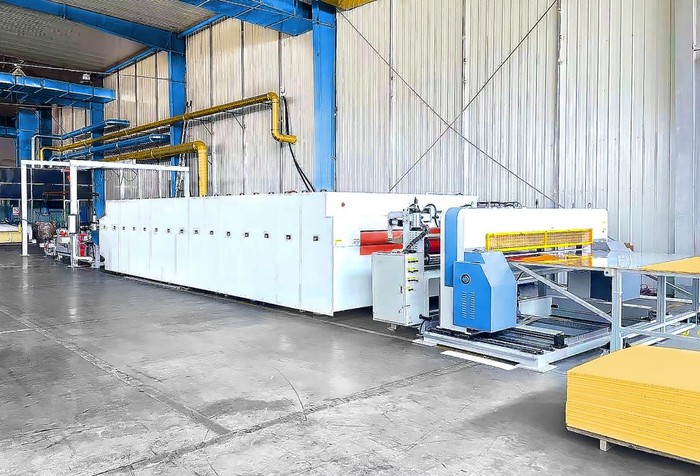

Double Belt Press Laminating Machine

Double belt press laminating machine













Machine rough drawing (it is customzied)









Machine application



1. Automotive: seat heating lamination, interior decoration,vehicle roof, insulation reinforcement roof boards

2. Insulation: insulation materials, glass and recycled fiber insulation materials, honeycomb structure materials

3. Filter industry: activated carbon filter, filtration media

4. Carbon fiber fabric

5. Glass fiber composites: glass-pp mats, glass mats, PP fiberglass composite

6. Activated carbon textiles material

7. Honeycomb panel materials

8. Advanced functional lamination, PE materials, medical supplies, footwear, etc.











Machine features

1) The pressure is transferred through the upper and lower conveyor belts and the contact heating and cooling systems are integrated. The laminated material will be uniformly heated. The material will be perfectly laminated with strong bonding.

2) The height is precisely adjustable.

3) Cooling zone will enhance the bonding of laminated materials.

4) Multilayers of materials can be laminated with the media of hot melt film or hot melt powder or the materials will be laminated by heating.

5) Various materials feeding methods, tension control methods, fixed length cutting methods and other devices are customizable.









Standard Technical Parameters (Customizable)

Width of Fabric	1600mm,1800mm,2000mm according to customers' requirement
Machine Roller Width	1800mm,2000mm,2200mm according to customers' requirement
Machine Speed	0-20m per min
Driven Type	Electric
Machine Heating Power	135kw, Customizable
Voltage	220v, 380v, Customizable
Estimated Machine Dimension	11000*3000*2830mm
Estimated Machine Weight	4600kg-18500kg









Machine shipment











In recent years, the use of flatbed laminating machines has become increasingly popular in a wide variety of industries. These machines offer a number of unique advantages over older, more traditional laminating techniques, making them an increasingly popular choice for businesses around the world.
One of the key advantages of a flatbed laminating machine is its ability to handle a wide range of materials, from delicate fabrics and films to thick, heavy duty materials. This versatility allows businesses to produce a wide variety of products using a single machine, making it a cost-effective solution for many applications.
Another major advantage of flatbed laminating machines is their speed and efficiency. These machines are capable of producing high-quality laminated products in a fraction of the time it would take to manually laminate individual pieces, making them ideal for businesses that need to produce large volumes of products in a short period of time.
Furthermore, flatbed laminating machines offer a high degree of precision and accuracy, ensuring that each product is perfectly laminated and ready for use. This precision also allows businesses to create complex designs and shapes, ensuring that the finished product is not only functional but also visually appealing.
In addition, flatbed laminating machines are also highly customizable, with a wide range of options and accessories available to tailor the machine to specific applications and needs. This means that businesses can invest in a machine that is perfectly suited to their specific requirements, further increasing productivity and efficiency.
Finally, flatbed laminating machines are also highly reliable and require minimal maintenance. This reduces downtime and ensures that businesses can continue to produce high-quality products without interruption or unexpected costs.
In conclusion, the use of flatbed laminating machines offers significant advantages over older, more traditional laminating techniques. Their versatility, speed, precision, customization, and reliability make these machines an ideal choice for businesses in a wide range of industries.
