Automatic Die Cutting Press Machine For Automotive

Automatic Die Cutting Press Machine for automotive

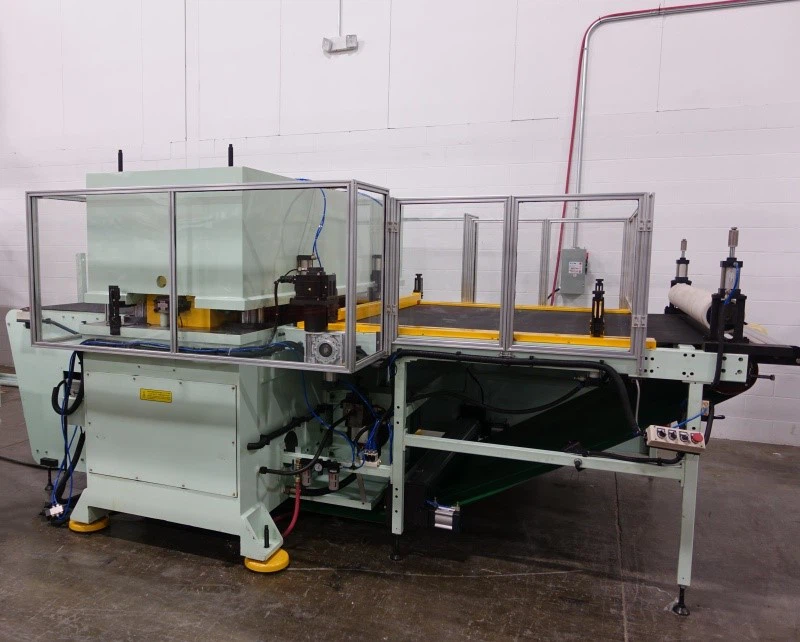

1. This Automatic Die Cutting Press Machine for automotive with conveyor belt is used for continuous and large-batch cutting of nonmetal materials in rolls, such as carpet and car interior materials, ball panel materials, leather, rubber, film, fabric and other materials.

2. The materials conveying part adopts PLC control. The materials are driven by servo motor and feed in from one side of the machine and finished products come out from the other side. The feeding is precise and automatic. The feeding length can be adjusted conveniently through touch screen.

3. The machine can be installed with four-column guiding, double-crank balancing, four-column blocking fine-adjustment mechanism and specially designed hydraulic control system, providing high speed and precise cutting operation. Central oil supply automatic lubricating device reduces the abrasion of all movable connecting parts to the minimum.

4. The die cutter or cutting mould can be fastened by pneumatic clamp device so as to make its replacement convenient and prompt.

5. Machines with special specifications can be available on request.





Key Points:

Conveyor Belt: Germany or Switzerland Made or Customizable

Oil Pump: Germany Made or Customizable

Special Hydraulic System lowers the operation noise

Sealing Ring: Made in Italy, Customizable
Press Switch: Made in Italy, Customizable
Cutting Switch: Made in Germany, Customizable









Automatic Die Cutting Press Machine for automotive application



Pls check below picture, if you are not sure which machine is better for you, pls contact us. We will give you suggestions.





Technical Spec:

Maximum Cutting Force	40T	60T	250T
Cutting Area (mm)	1250*800	1250*1200/1600*1200	1800*1200/Customizable
Tension Distance (mm)	25-135	25-135	25-175/Customizable
Motor Power (kw)	4	5.5	22kw
Estimated G.W (kg)	5000	7500	15900











Packaging & Shipping

Automatic Die Cutting Press Machine for automotive

Inner Package: Protective Film, etc

Outside Package: Plywood Case

Machines well packed with protective film and loaded in plywood case or export container;

English version operation manual and technical data;

One-Year-Period wear parts;

Tool kit
