Hydraulic Conveyor Belt die cutting machine
video
Hydraulic Conveyor Belt die cutting machine

Hydraulic Conveyor Belt die cutting machine

1.function of the machine is to cut materials by cutting molds into different shapes
2.Machine working table is customized
3.Machine cutting pressure is from 40ton to 350ton
4.Machine is continuously cutting non-metal materials(such as leather, rubber and cloth) in large batch with the help of molding cutting die. It is most suitable for soft material cutting, such as fabric, film, felt, nonwoven, etc.

Send Inquiry
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Hydraulic Die Automatic Cutting Machine

Leather Cutting Press Machine

Hydraulic Automatic Cutting Machine

Health Care Medical Supplies Die Cutting Machine

Football Panel Die Cut Press

Automatic Polyethylene Foam Die Cutting Machine



Hydraulic Conveyor Belt die cutting machine photos


hydraulic die cutting machine


hydraulic cutting machine


hydraulic die cutting machine1




Product Description


Hydraulic conveyor belt die cutting machine

1. This type of die cutting machine with conveyor belt is used for continuous and large-batch cutting of nonmetal materials in rolls or in sheets, such as carpet and car interior materials, ball panel materials, leather, rubber, film, fabric and other materials.

travel head cutting machine application


2. The materials conveying part adopts PLC control. The materials are driven by servo motor and feed in from one side of the machine and finished products come out from the other side. The feeding is precise and automatic. The feeding length can be adjusted conveniently through touch screen.



3. The machine is installed with four-column guiding, double-crank balancing, four-column blocking fine-adjustment mechanism and specially designed hydraulic control system, providing high speed and precise cutting operation. Central oil supply automatic lubricating device reduces the abrasion of all movable connecting parts to the minimum extent.



4. The die cutter or cutting mould can be fastened by pneumatic clamp device so as to make its replacement convenient and prompt.



5. Machines with special specifications can be available on request.




Key Points:

Conveyor Belt: Germany or Switzerland Made or Customizable

Oil Pump: Germany Made or Customizable

Special Hydraulic System lowers the operation noise

Sealing Ring: Made in Italy
Press Switch: Made in Italy
Cutting Switch: Made in Germany




Usage & Features:

1. Hydraulic Cutting Machine is applicable to continuous and large-batch cutting of nonmetal materials such as fabric leather, carpet, rubber, film, foam and cloth etc. in large-scale factories by die cutter.

2. Use PLC computer touch screen to control procedures, servo motor driver conveying system, insure feeding accurate range, with stable running speed.

3. Can work in fully automatic, semi-automatic, manual mode

4. Main machine is controlled by four-column guiding, double-crank balancing, four-column blocking fine adjustment mechanism and hydraulic control system, which can guarantee the speed and accuracy of die cutting machine.

5. The central automatic lubrication system can guarantee the machine precision and enhance machine durability

6. The input and output of materials are conveyed on the conveying belt, and the die cutting of materials is also automatically completed on the conveying belt.

7. The unwinding system can be designed based on customer's requirement.

8. The device with cutting board and fixed mold to make the operation more convenient.

9. Hydraulic beam cutting press of special specifications can be customized.




Main Technical Data(Customizable)



Model

XCLP4

Maximum cutting force

150T

200T

Cutting area

1600*1000mm1750/1600*1000mm

Motor power

5.5KW

11KW

Tension Distance25-135mm25-135mm

Machine weight

9500kg

11500kg





Machine structure

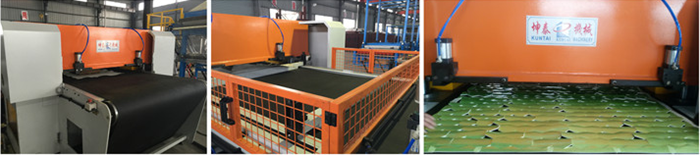

machine details.png


conveyor belt die cutting machine.JPG



Package and shipping


Inner Package: Protective Film, etc

Outside Package: Plywood Case

  • Machines well packed with protective film and loaded in plywood case or export container;

  • English version operation manual and technical data;

  • One-Year-Period wear parts;

  • Tool kit
