Travel Head Cutting Machine for abrasive disc

Travel Head Cutting Machine for abrasive disc







Features of Hydraulic Travel Head Cutting Machine



1. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.

2. The cutting head can automatically move horizontally, with excellent operating visual field and safe operation.

3. Differential oil way is adopted to allow rapid and convenient cutting.

4. The special design of the hydraulic system,  the machine is lubricated automatically during operation. This design can reduce abrasion and ensure machine service life.

5. The lifting position of pressing board can be freely set to reduce idle travel and  enhance work efficiency.

6. Quiet, vibration free operation.

7. Machines working dimension can be customizable.









Reference Technical Data (Customizable):



Model	KTD-T250	KTD-T300	KTD-T350	KTD-T500	KTD-T750
Maximum cutting force	25T	30T	35T	50T	75T
Working table	1600*500mm	1600*500mm	1600*500mm	1600*500mm	1600*500mm
Size of travel head	500*500mm	500*500mm	500*500mm	500*500mm	500*500mm
Adjustable stroke	5-150mm	5-150mm	5-150mm	5-150mm	5-150mm
Motor power	6.5KW	6.5KW	7KW	7.5KW	12KW











Machine Structure

1. Clip-on step-wise feed parts

The part consists of the servo motor, reducer, pneumatic clamping device, tension mechanism.

Machine adopts pneumatic clamping material motion, to ensure that the material is not the distortion or displacement

Driven by servo motor, feed length can be changed by input data on the touch screen directly

2. Main cutting part

(1) Cutting machine consists of frame, hydraulic parts and automatic moving head parts, etc

(2) The punching board is equipped with cutting die fixture. It is convenient and easy to change die cutter.

(3) Cutting die sideslip is driven by ball screw and servo motor, moving precision is high

(4) Special design impact the micro mechanism of the punch die cutting a row or several rows to PP board move, prolong the service life of the PP board

(5) Use flywheel energy storage to achieve high cutting, save electricity, no high oil temperature rise

(6) Stroke setting institutions cooperate with die cutter in the cutting height setting, make adjustment of cutting convenient and precision

(7) Main seals used German imported brand. Hydraulic parts, electrical appliances are all use imported brand, they are durable.

(8) Host after high frequency quenching oil cylinder piston rod cylindrical surface hard chromium plating processing, ensure the machine service life

3. Pneumatic parts

With electric and manual control to complete the die cutter positioning, stuffing, and other functions

4. Electrical component

(1) Electric cabinet needs waterproof, dustproof, protection

(2) Equipment to the site installation materials and electrical cabinet construction completed by the buyer, the servo motor encoder signal lines provided by the supplier

(3) All parts are with circuit breaker or fuse protection



Main Components Supplier

Name	Supplier
PLC	Mitsubishi
touch screen	Mitsubishi
contactor (switch)	Taiwan
thermorelay	Taiwan
button switch	Schneider
miniature relay	Omron
servo motor	Siemens
main hydraulic parts	CML
sealing element	B+S
oil pump	Settima
linear bearing	Taiwan
travel switch	TEND
motor	Mitsubishi
pneumatic element	AIRTAC

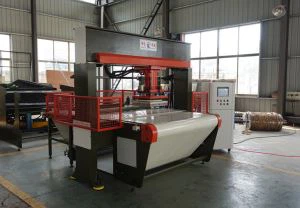

Travel head cutting machine for abrasive disc with 6 rolls unwinder photo:









Company Certificates (CE certificate):







Advantages of travel head cutting machine:

1. Precision Cutting
One of the key benefits of a travel head cutting machine is its ability to produce accurate cuts with minimal effort. The hydraulic power of the machine ensures that the blade cuts smoothly and evenly, resulting in a clean cut that meets exacting specifications every time. This ensures a consistent level of quality for your products and helps eliminate any waste or rework that can arise from manual cutting.
2. Increases productivity
Another benefit of using a travel head cutting machine is that it can significantly increase productivity. With the machine, you can quickly and accurately cut patterns for large batches of products, which can significantly reduce production time. This is especially useful when you have large orders to fulfill in short periods of time. Additionally, these machines are easy to use and can be operated by one person, freeing up your staff for other tasks.
3. Versatility
A travel head cutting machine is versatile and can cut a wide range of materials, including leather, foam, rubber, fabric, and even cork. This level of versatility makes it ideal for use in a wide range of industries, including automotive, fashion, furniture, and footwear.
4. Consistent Quality
The precision and accuracy of a travel head cutting machine ensures that every cut is the same, meaning there is very little or no variation in the finished product. This consistent quality reinforces the brand image and customer loyalty, increasing the chances of repeat business.
5. Reduced Labor Cost
By using a travel head cutting machine, the workload on your employees is reduced, giving them more time to focus on other tasks. This can help reduce labor costs and increase productivity as a result. With the machine, you can ensure that the perfect cut is achieved every time, so there is no need for additional labor costs for workers to address quality control.
