Hot Melt GlueLaminating Machine for blackout
1.function of the machine is to laminate 2 layers materials with adhesive
2.Working width range is 1000-3600mm
3.Laminating speed: 10-55m/min
4.Machine is OK to laminate fabric with fabric, fabric with film
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Working process technology of hot melt glue laminating machine
Negative blade position for hot melt glue for dot coating with gravure roller
How It Works:
Adhesive Application: Hot melt glue is applied to one material surface using methods like heated roller.
Material Feeding: Two layers (fabric and film) are fed into the machine.
Lamination: The materials are brought together under pressure, with heated rollers, activating the glue for bonding.
Cooling/Curing: The laminated product moves through cooling rollers, and if PUR adhesive is used, moisture curing occurs for lasting elasticity.
Winding: The finished laminated material is wound into final products.
Applications:
Textiles: Creating waterproof, breathable, or technical fabrics (like for sportswear, medical).
Construction: Making insulation panels (EPS foam, rock wool).
Automotive/Footwear: Laminating materials for interiors, soles.
Common Materials Laminated:
Fabrics: Woven, knitted, non-woven, fleece, jersey, velvet.
Films: TPU, PE, PU, PTFE, PVC.
Foams: EPS, sponge.
Others: Leather, paper, metal foil.
WIDELY USED IN:
1. Textiles and Garments Industry
2. Medical Products Industry
3. Bags and Luggage Industry
4. Packaging Industry
5. Footwear Industry
6. Decoration Industry
7. Auto interior decoration Industry
8. Furniture Industry
9. Blackout and mattress protector
STANDARD TECKNICAL PARAMETERS OF HOT MELT GLUE LAMINATING MACHINE(IT CAN BE CUSTOMIZABLE)
|
Model: |
KT-PUR |
|
Maximum Material Width: |
1600mm, 1800mm, 2000mm, 2200mm, 2400mm to 3600mm |
|
Machine Roller Width: |
from 1800mm to 3800mm |
|
Gluing Amount: |
5-35g/m2 |
|
Machine speed: |
10-50m/min |
|
Power: |
65-85KW |
|
Electric Current and Voltage: |
Customizable |
|
Net Weight: |
10000-14000KGS |
|
Dimension: |
11800 x 4500 x 3600mm |
Hot melt glue laminating machine configurations:
|
No. |
Main Parts |
Detailed Specifications |
|
1 |
Feeding & unwinding device |
1) Feeding & rolling trolley frame: A-frame, total 4 sets. 2) A Material feeding device: two-roller cylinder side to side group, 2 pcs plate guide rollers. 3) Operating table: operating foot pedal and film winding torque motor mechanism group and 3pcs electroplating guide rollers. 4) Film feeding: film deliver frame with air shaft. 5) Tension control group: aluminum tension dancing rollers, equipped with precision pneumatic piping component group. 6) B Material feeding device: rubber transmission roller *2HP variable frequency drive double cylinder opposite side group, 3 pcs plating guide rollers. 7) Fabric opening roller before gluing. 8) Fabric opening roller before laminating: A material is applied to the front strip fabric opening roller and 0.5HP frequency conversion drive and B material is applied to the front aluminum fabric opening roller. |
|
2 |
Gluing device |
1) Gluing unit: φ250 gluing gravure roller, 2HP frequency conversion, main speed control drive chain gear and rotary joint and bearing, gluing blade, pneumatic lifting mechanism device and rubber pressing roller. 2) Gluing roller change crane: Single-track 1000KG lifting crane for the gluing roller replacement. |
|
3 |
Laminating device |
1) Laminating unit: φ250 laminated steel rollers. 2) Cooling set: φ250 cooling rollers * 2 sets with joints and bearings. |
|
4 |
Winding device |
Feeding device: one set of winder for big roll. Tension device before winding: tension device equipped with precision pneumatic edge alignment device, aluminum fabric opening roller before winding. Surface winding device. |
|
5 |
Electronic control system |
Touch screen with Mitsubishi brand. And language is customized. PLC controller with Mitsubishi brand. Frequency converter with YASKAWA brand: The whole machine is operated synchronously and centrally controlled by the inverter. The operation is simple and convenient, and the performance is reliable. Motor reducer with Siemens brand. Electric with Schneider brand. Pneumatic components brand with Taiwan Yadeke brand. System control: all parameters are set and displayed on the touch screen. The main central control cabinet is located in the center of the machine, with an operating display and buttons at the winding. Control cable: anti-interference cable, connector with label, cable box, neatly arranged for easy maintenance. |
|
6 |
Mechanical racks |
Steel plate: GB-45. Profile: GB channel steel, GB square tube steel. Column: 120*120*6 square tube, stable and anti-seismic. Beam: 120*120*6 square tube, stable and anti-seismic. Structure: machine main part use 35mm thickness plate. Guide roller: aluminum alloy, by anti-oxidation treatment, anti-scratch and scratch treatment. |

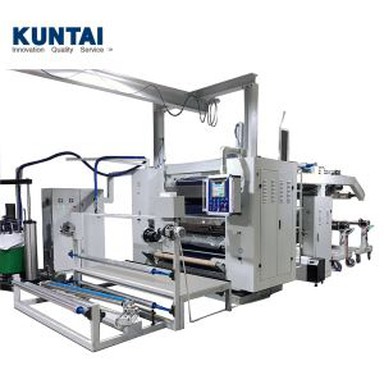

Photos of hot melt glue laminating machine:
Key Features:
◆ Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.
◆ With this type of laminating machine, materials are firmly bonded and products are soft, comfortable, washable and breathable.
◆ Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.
◆ Siemens brand motors and inverters can be installed for stable machine performance.
◆ Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.
◆ Fabric and film openers also makes materials feed smoothly and flatly.
◆ For 4-way strechable fabrics, special fabric transmission/conveyor system can be installed on the laminating machine.
◆ Parallel centering unit makes sure the materials feed in order.
◆ Specially designed gluing system well controls the adhesive amount and guarantees precision.
◆ For the hot melt adhesive melter, temperature control is accurate and stable.
◆ Final laminated materials can be rewinded into small rolls or large rolls.
◆ Low maintenance cost and less running noise.
◆ Advanced technology, secure quality control and satisfactory aftersales service make our lamination machines the first choice for customers both domestically and internationally.
