Laminating Machine For CBRN

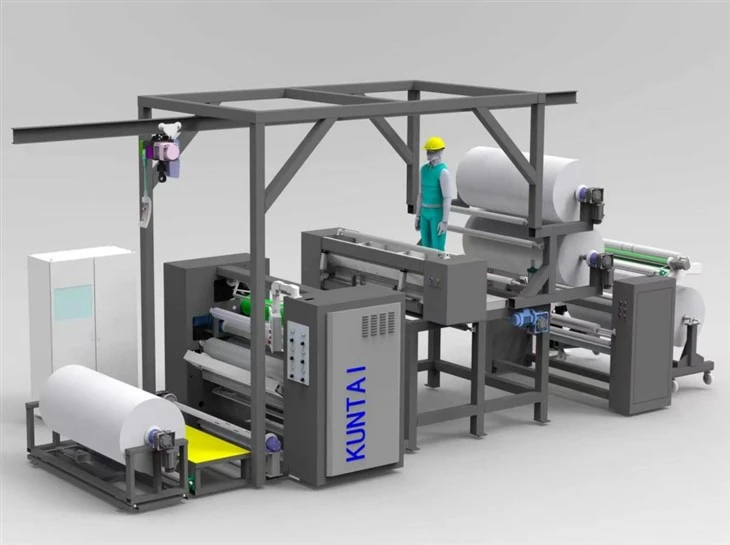

CBRN Laminating Machine

A CBRN laminating machine is a specialized industrial bonding equipment used for manufacturing CBRN (Chemical, Biological, Radiological, Nuclear) protective materials.

It bonds multiple functional films and fabrics-such as gas-proof membranes, barrier films, radiation shielding layers and high-strength textiles-into integrated protective composites under high temperature, high pressure and vacuum conditions. These materials are widely applied in military, firefighting, emergency rescue and other fields for protective suits, masks, shelters and CBRN defense equipment.

1. Core Definition

• CBRN: Chemical, Biological, Radiological, Nuclear

• Laminating Machine: A machine that joins two or more layers of materials together by heat, pressure or adhesive to form a new composite with enhanced performance.

• CBRN Customized Type: Designed specifically for anti-gas, anti-biological, anti-radiation and nuclear decontamination requirements, completely different from ordinary packaging or office lamination machines.

2. Main Applications

• CBRN protective garment fabrics (activated carbon cloth, waterproof breathable membranes, chemical-resistant coatings, radiation shielding layers)

• Protective mask and helmet inner liners

• Nuclear, biological and chemical resistant tents and emergency shelters

• Chemical-resistant seals and shielding liners for military vehicles, ships and aircraft

3. Key Technical Features

a. Material Compatibility
Suitable for PTFE, PU, activated carbon fiber, aramid, PE, tantalum fiber and other high-performance CBRN materials, balancing barrier performance, air permeability, flexibility and wash resistance.

b. Precise Process Control

• Temperature range: 80–180°C, precision ±1°C

• Pressure range: 5–20 MPa, hydraulic or pneumatic pressing

• Optional vacuum system for bubble-free lamination

• Running speed: 1–20 m/min for mass production

c. Mechanical Structure
Multi-roller system with heating rollers, pressure rollers, cooling rollers and tension control units. Equipped with PLC intelligent control, automatic deviation correction, on-line thickness inspection and data traceability. Corrosion-resistant stainless steel and Teflon coated body.

d. Difference from Ordinary Laminators

• Ordinary laminator: Low temperature, low pressure, only for surface protection.

• CBRN laminating machine: Military-grade high temperature, high pressure and vacuum lamination, focusing on nuclear and biochemical protection functions.

e. Typical Industry Sectors

Military forces, public security & counter-terrorism, nuclear power plants, high-level biosafety laboratories and epidemic prevention institutions.

f. Selection Guidelines

Compliant with NIOSH, EN 14126, GJB and other CBRN standards; customizable lamination layers; available working width 1.6–3.2m; high precision temperature and pressure control; full compatibility with advanced protective raw materials.
