Automatic 4UD Fabric Laminating Crossply Machine
Crossply Machine is made up of 0°unwinding device, 90°unwinding, width fixed device, pressing and laminating device,and rewinding device, etc. It is used for 2/4/6/8UD fabric pressing and laminating.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Automatic 4UD fabric laminating Crossply Machine

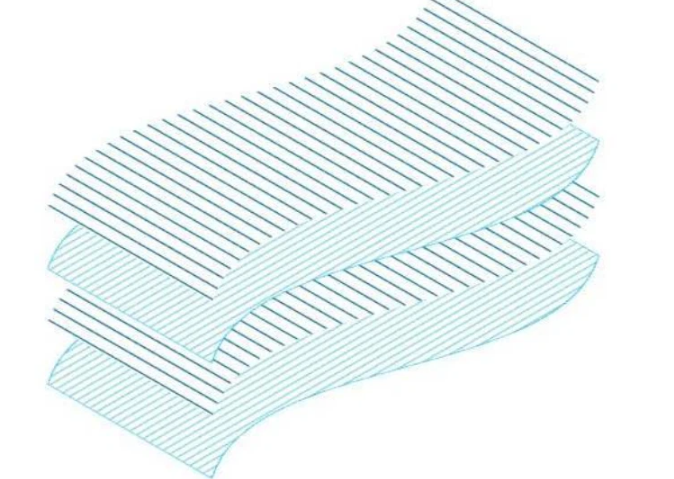

The crossply machine is a versatile solution for a wide range of applications, such as 2UD fabric laminating machine, 4UD fabric laminating, 6UD fabric laminating machine and 8UD fabric laminating. It is made up of 0°unwinding device, 90°unwinding, width fixed device, pressing and laminating device,and rewinding device, etc. It is used for 2/4/6/8UD fabric pressing and laminating.
Product Advantages
1. The machine is equipped with Magnetic powder tension control unwinding device for smooth tension feeding.
2. Another layer of material can be automatic feeding or manual feeding based on requirement. it can be customizable.
3. By relying on the pneumatic structure of the multi-point upper pressure plate, the material clamping force points are kept consistent for rapid descent.
4. Linear precise guidance and servo drive ensure the service life and hot cutting accuracy of equipment movement.
5. High frequency quenching and hard chromium plating treatment are carried out on the surface of the moving track to ensure a high interest rate of service life
Main Machine Parameters:
| Pressing tonnage | 6000KN |
| Working table dimension | 1700 * 1700mm |
| Material width | ≤ 1650mm |
| Heating method | external oil heater circulation |
| Control mode | HMI+PLC |
Machine Pictures:
