UHMW-PE UD Aramid Fabric impregnating machine
Process flow of UD fabric production line Yarn unwinding → Bundling → Warping → Spreading → Dipping/coating →Film covering → Drying and curing → Guiding →Winding
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
UHMW-PE UD Aramid Fabric impregnating machine
Yarn bobbin creel

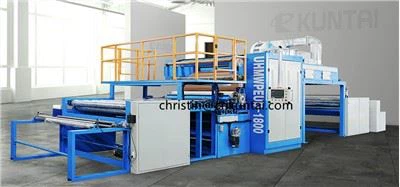

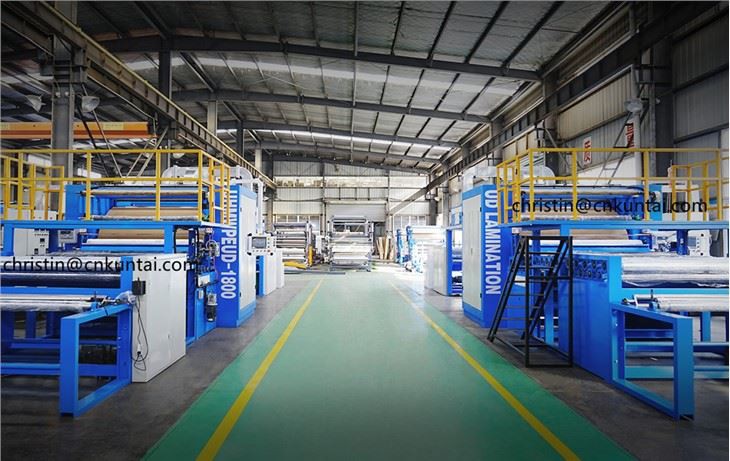

Machine machine photo
Finished products
Application
UHMW-PE UD Aramid fabrics impregnating machine with film and resin is used for lamination for UHMW-PE UD fabrics, UD Aramid fabrics.
Operating principle of machine
Process flow of UHMW-PE UD Aramid Fabric impregnating machine
Yarn unwinding → Bundling → Warping → Spreading → Dipping/coating →Film covering → Drying and curing → Guiding →Winding.
Place the tubular ultra-high molecular weight polyethylene fibers on the creels, unwind them and arrange them in parallel with the bundle device. After being bundled, parallel PE fibers pass through a warping device to form parallel and tightly arranged fiber bundles. Pre tension is applied to the stretched ribbon tow to ensure its flatness. After being immersed in the adhesive device and coated with fibers, the uniform fiber bundles after being controlled by the adhesive device are compounded with PE bearing film, and then evaporated by a heat roller to solidify the resin solvent to form a unidirectional PEUD cloth.
Main technical parameters of UHMW-PE UD Aramid Fabric impregnating machine
1) Equipment roll surface: 2000 mm
2) Material width: ≤ 1650mm
3) Adhesive used: water-based
4) Gluing method: dipping/coating
5) Wire spreading mode: mechanical multi roll+profiled
6) Control mode: HMI+PLC
7) Drive control: variable frequency+servo drive
8) Lamination roller: external circulating thermal oil roller
9) Heating source mode: circulating thermal oil
10) Temperature control mode: 60KW external mold oil heater
11) Dynamic balance: friction mirror surface roller/heating roller
12) Roller surface treatment: friction roller mirror level 14
13) Total power: 90KW
14) Composite speed: 5-11m/min
15) Power supply: 380V/50Hz
16) Length * width * height: 31500 * 5180 * 3000mm
Machine drawing with details
