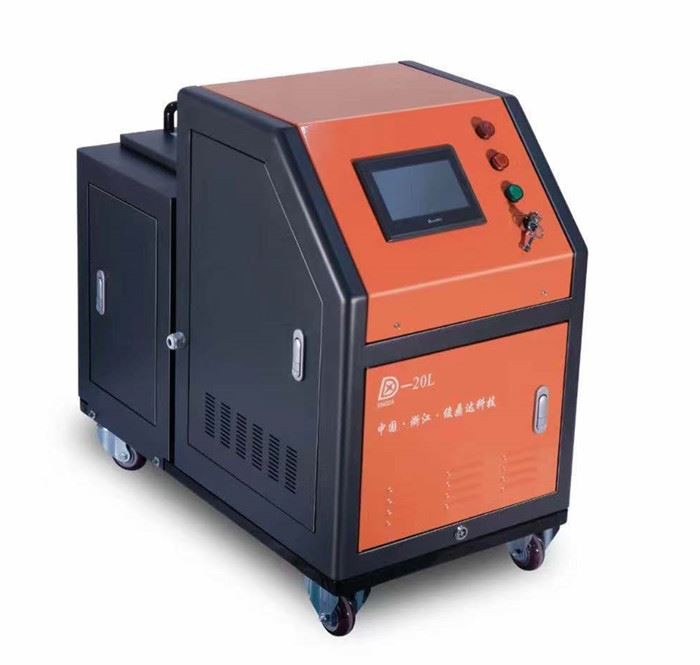

EVA Glue Melter Machine
Kuntai melting tank with Teflon coating can prevent carbonation With cylinder tank design and uniform heating mode of under pan of the melter, it can avoid high local temperature and reduce carbonation. Special design of thermal insulation construction can achieve the energy-saving and efficient...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Kuntai melting tank with Teflon coating can prevent carbonation
With cylinder tank design and uniform heating mode of under pan of the melter, it can avoid high local temperature and reduce carbonation.
Special design of thermal insulation construction can achieve the energy-saving and efficient operation. With Heat Insulation design for electrical cabinet, it can ensure effective heat insulation and heat preservation for electric control system and tank and guarantee electric control system work in good condition.
The push-pull design is adopted to electric control cabinet. Standard and modular design is convenient for maintain and upgrade, with great stable operation performance is more convenient to adjust and set parameters of the machine.
Equipped with alarm and protection switch for the over temperature issue. And the low temperature protection switch can prevent damage for gear pump and motor for low temperature start.
Melter tank with external radiation uniform heating code can much reduce carbonation.
Equipped with high precision filter，it improves filtration precision and prolongs its service life.
Using high power electrical connector greatly improves safety and reliability of connector and communication.
Basic parameters
Name | Main Technical Specification | |
Capacity/L | 4\10\18\25\50\100\200\500-1000 | |
Max. output g/min | 50kg/hour | |
Hose quantity | 1-6(as needed by contract) | |
Temp.range℃ | Tank |
30-220 Adjustable |
Hose | ||
Glue gun | ||
Max operating pressure/MPA | 7 | |
Control mode | Traditional electrical control; fully integrated SCM control; PLC automatic control. | |
Programming mode | Fully integrated SCM and PLC automatic control withoff-line programming mode | |
Structure of gear pump | Single or double layers | |
Power source | A.C Single-Phase,50/60Hz, 220V or A.C Three-Phase four-wire system, 50/60Hz,380V | |
