Double Belt Press Machine

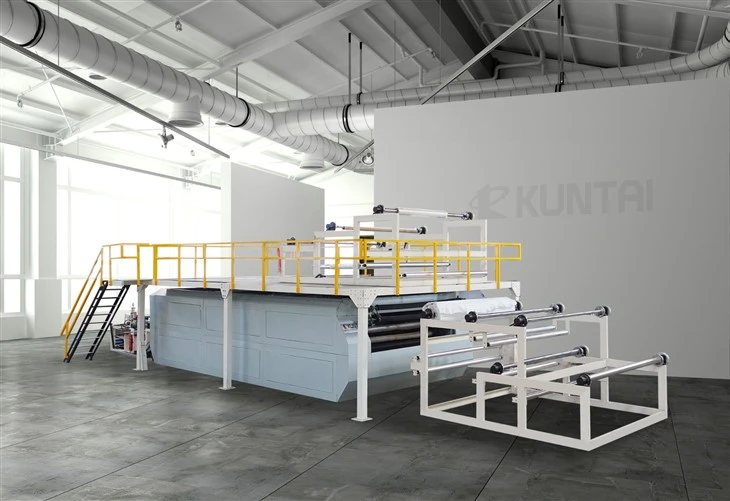

Double belt press machine

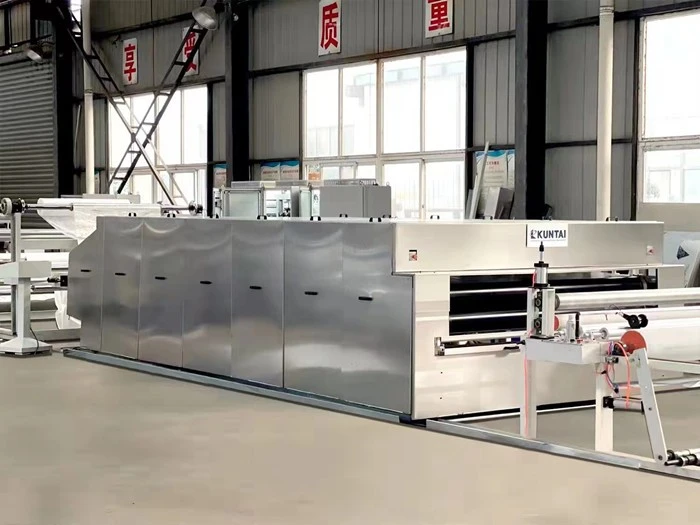

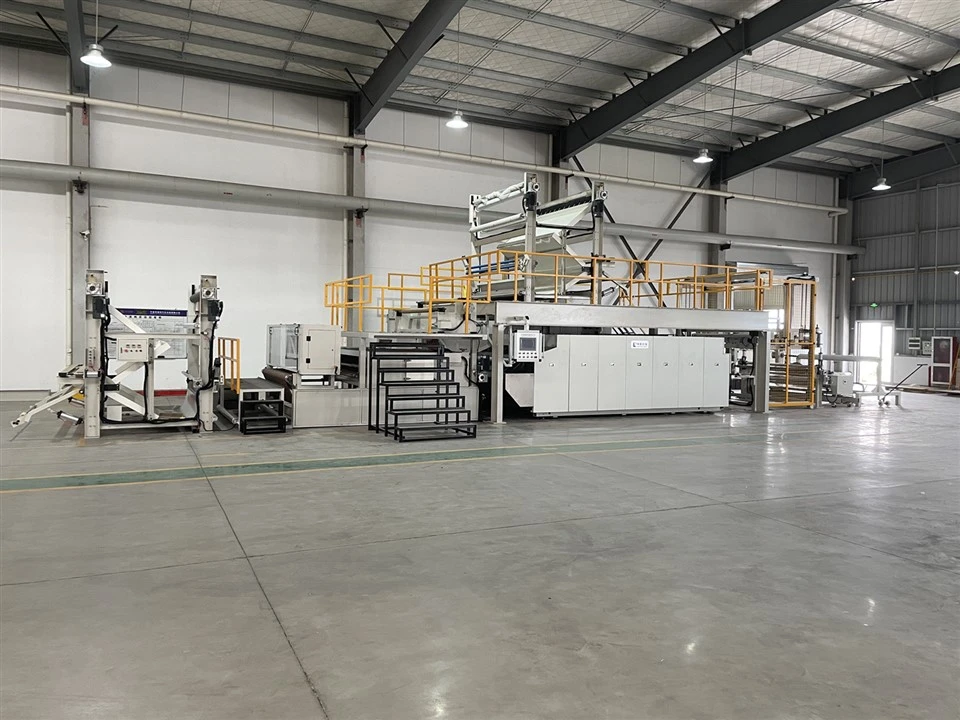

Double belt press photos













Photo of double belt press heating and cooling inside





Structure of heating zone and cooling zone









Application





The advanced double belt press machine is widely used in the high and new tech materials industry, such as:

1. fiber reinforcement,

2. aerospace, ballistics,

3. filter materials,

4. sound insulation materials,

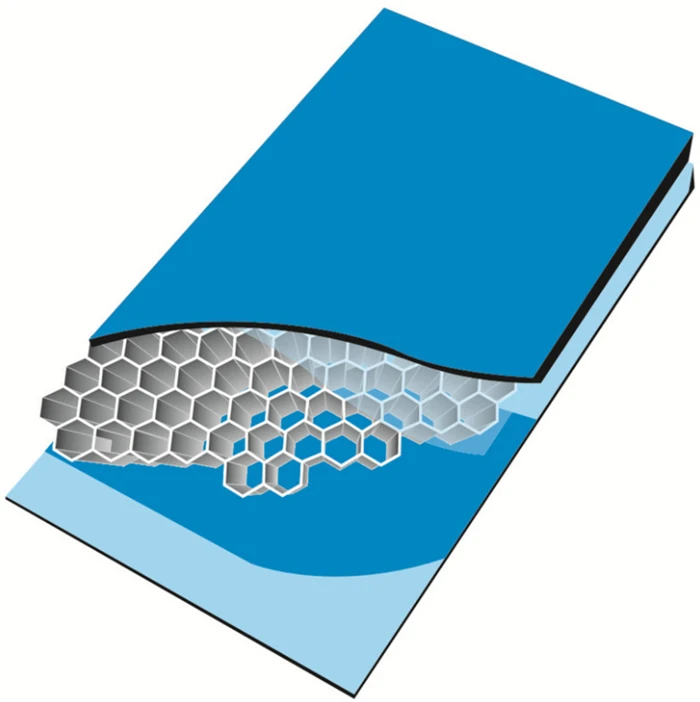

5. honeycomb materials,

6. interior decoration industry,

7. footwear industry









Features of double belt press



1) The pressure is transferred through the upper and lower conveyor belts and the contact heating and cooling systems are integrated. The laminated material will be uniformly heated. The material will be perfectly laminated with strong bonding.

2) The height is precisely adjustable.

3) Cooling zone will enhance the bonding of laminated materials.

4) Multilayers of materials can be laminated with the media of hot melt film or hot melt powder or the materials will be laminated by heating.

5) Various materials feeding methods, tension control methods, fixed length cutting methods and other devices are customizable.







Standard Technical Parameters (Customizable):

Width of material	1600mm,1800mm,2000mm according to customers' requirement
Machine Roller Width	1800mm,2000mm,2200mm according to customers' requirement
Machine Speed	0-20m per min
Driven Type	Electric
Machine Heating Power	135kw, Customizable
Voltage	220v, 380v, Customizable
Estimated Machine Dimension	11000*3000*2830mm
Estimated Machine Weight	4600kg-18500kg









Doubel belt press machine package







Double belt press machine loaded on container
