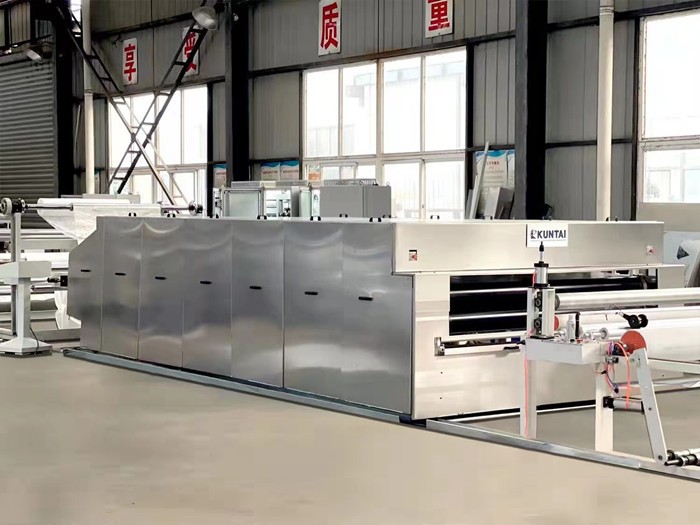

Double Belt Press Laminating System

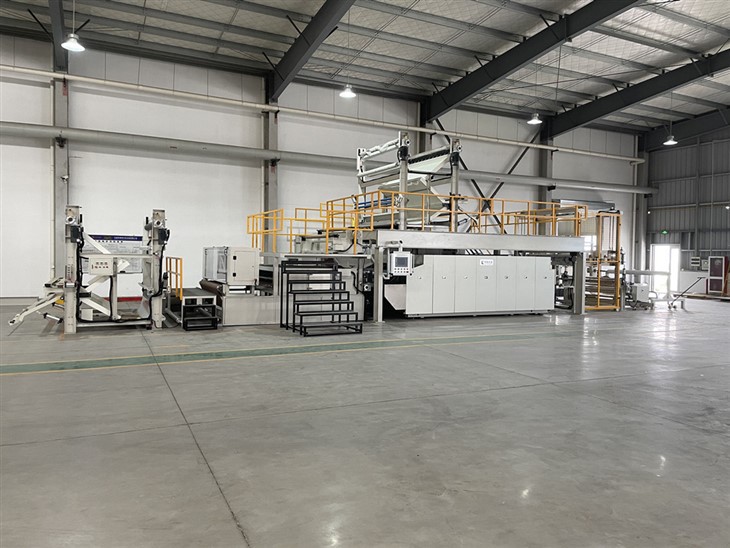

Double belt press laminating system













Machine sketch







Application





1. Automotive: seat heating lamination, vehicle roof, insulation reinforcement roof boards

2. Insulation: insulation materials, glass and recycled fiber insulation materials, honeycomb structure materials

3. Filter industry: activated carbon filter, filtration media

4. Carbon fiber fabric

5. Glass fiber composites: glass-pp mats, glass mats, PP fiberglass composite

6. Activated carbon textiles material

7. Honeycomb panel materials







Double belt press is produced by Kuntai work continuously for laminating or gluing different materials together. Various materials in rolls or sheets can be glued, coated or compressed. Depending on the application and process, we can advise you on the selection of a suitable system solution according to your requirements.
In order to avoid possible irregularities and ensure the homogeneity of the composite material, different heating zones are used to slowly heat, pressurize and achieve the desired properties of the material, and then bond them together. The cooling system is also divided into multiple zones to ensure proper cooling of the products. The separate heating and cooling treatments of zones play a decisive role here.

We offer height-adjustable press rolls to meet high pressure requirements on materials. The pair of press rollers is placed between the heating and cooling system and has an optional temperature control function.







Standard Technical Parameters (Customizable):



Width of Fabric	1600mm,1800mm,2000mm,2200mm according to customers' requirement
Machine Roller Width	1800mm,2000mm,2200mm,2400mm according to customers' requirement
Machine Speed	0-25m per min
Driven Type	Electric
Machine Heating Power	135-300kw
Voltage	220v, 380v, Customizable
Estimated Machine Dimension	12000*2000*1230mm
Estimated Machine Weight	8600-15000kg









Double belt press features:

♦ Flexible arrangement of heating elements

♦ Edge zone division of the entire heating system

♦ Different materials and material thicknesses possible

♦ Compounding of multilayer materials

♦ Can be used for sheet processing

♦ Temperature range from 20°C-250°C, individually adjustable in all zones

♦ For bonding, heat setting, alignment and/or surface consolidation

♦ Working width between 300-3000 mm









Package and shipping：

Inner Package: Protective Film, etc

Outside Package: Standard Export Container
