Hot Melt Lamination Machine
1.function of the machine is to laminate 2 layers materials with adhesive
2.Working width range is 1000-3600mm
3.Laminating speed: 10-35m/min
4.Laminated materials:
Fabric + fabric:textiles, jersey, fleece, Nylon, Velvet, Terry cloth, Suede,etc.
Fabric + films, such as PU film, TPU film, PE film, PVC film, PTFE film,etc.
Fabric+ Leather/Artificial Leather,etc.
Fabric + Nonwoven
Diving fabric
Sponge/ Foam.
Plastics
EVA+PVC
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
hot melt lamination machine
The importance of hot melt lamination machine in life is more and more recognized, it is widely used in food packaging, clothing, shoes and hats, luggage, computer bags, auto parts and other fields, and has the following advantages:
1. Enhance protective performance: The hot melt lamination machine can compound two or more materials together to form a packaging material with better protective performance, which can effectively protect the items.
2. Improve the physical properties of materials: The hot melt lamination machine can compound materials with different properties and different thicknesses together, so as to improve the physical properties of materials, such as strength, toughness, etc.
3. Increase the aesthetics of the product: The hot melt lamination machine can compound the materials of different colors and patterns together, making the product more aesthetic and increasing the added value of the product.
4. Reduce production costs: Laminating machines can combine lower-cost materials with high-grade materials with the same functional requirements, thereby reducing production costs.
5. Increase environmental friendliness: The materials after the laminating machine can be reused and recycled, which reduces environmental pollution and improves environmental protection.
Application industries for different materials:
1.TEXTILE INDUSTRY: non-woven products,TPU,PE,PTFE,non-woven,fabrics ,artificial leather
2.AUTO INDUSTRY: Auto traveling head ceiling decoration,post ,cardoor fabric layer.
3.CLOTH INDUSTRY: outdoor sportswear,the field of military fatigues,fire control and police clothing ,medical and health category of clothing underwear ,warm clothing ,cold protective clothing and other functional clothing.
4.HEALTH CARE: medial clothing ,protective clothing etc.
5.FILTER MATERIALS:PTFE.PE thin film processing ,used for sewage and air filter and etc
6.SHOE INDUSTRY:shoe lining ,insole.
For hot melt lamination machine, when PTFE, PE, TPU and other functional waterproof and breathable films are used in laminating, waterproof and heat preserving, waterproof and protective, oil & water & gas filteration and many other different new materials will be created. The demands of garment industry, motor manufacturing, medical industry, environment protection industry will be met.

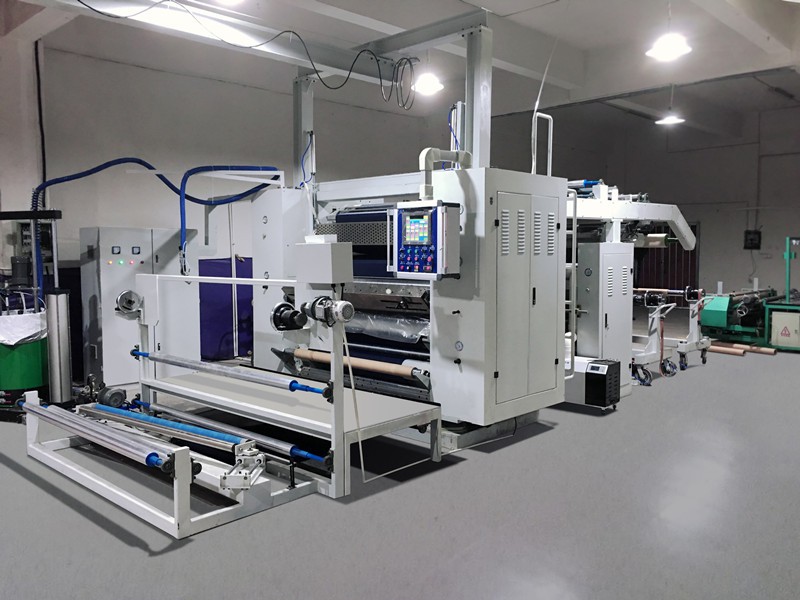

Photo of hot melt lamination machine
Key Features:
Our hot melt lamination machine is mainly consisted of fabric rewinding and unwinding units, fabric and film transmission systems and tension controller, film unwinding and lining or film carrier rewinding device, hot melt glue melting unit (optional), pump (optional), conduction oil source system (optional), glue dot transfer unit, laminating device, cooling device, PLC and other devices. It is compact, highly automatic and easy to maintain.
1. Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.
2. With this type of laminating machine, materials are firmly bonded and products are soft, comfortable, washable and breathable.
3. Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.
4. Famous brand motors and inverters can be installed for stable machine performance.
5. Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.
6. Fabric and film openers also makes materials feed smoothly and flatly.
7. For 4-way strechable fabrics, special fabric transmission/conveyor system can be installed on the laminating machine.
8. Parallel centering unit makes sure the materials feed in order.
10. Specially designed gluing system well controls the adhesive amount and guarantees precision.
11. For the hot melt adhesive melter, temperature control is accurate and stable.
12. Final laminated materials can be rewinded into small rolls or large rolls.
13. Low maintenance cost and less running noise.
14. Advanced technology, secure quality control and satisfactory aftersales service make our lamination machines the first choice for customers both domestically and internationally.
Standard Technical Parameters (Can be Customizable):
| Model: | KT-PUR-1800 |
| Maximum Material Width: | 1600mm |
| Machine Roller Width: | 1800mm |
| Gluing Amount: | 5-80g/m2 |
| Machine Speed: | 10-60 m/min |
| Power: | 45.0 KW |
| Electric Current and Voltage: | Customizable |
| Estimated Net Weight: | 11500 KGS |
| Estimated Dimension: | 11800 x 3400 x 3700 mm |
Delivery photos
Hot melt lamination machines are loaded into container
More machines from Kuntai
Laminating machine
Cutting machine
Company profile
Since 1985, we have been manufacturing various cutting machines and coating lamination machines for different industries, such as packaging industry, car trim industry, footwear industry, garment industry, toys industry, upholstery industry and so on. Strong engineering power and satisfactory aftersales service consolidate our leading place in both domestic market and overseas market.
