Solventless Laminating Machine

Solventless laminating machine













Hot Melt Adhesive:



In industrial use, hot melt adhesives provide several advantages over solvent-based adhesives. Volatile organic compounds are reduced or eliminated, and the drying or curing step is eliminated. Hot melt adhesives have long shelf life and usually can be disposed of without special precautions.



The most advanced hot melt adhesive, moisture reactive hot melt glue (PUR & TPU), is highly adhesive and environmentally friendly. It can be used for lamination of 99.9% textiles. The laminated material is soft and high temperature resistant. After moisture reaction, the material will not be easily affected by the temperature. Besides, with lasting elasticity, the laminated material is wear resistant, oil resistant and aging resistant. Especially, mist performance, neutral color and other various features of PUR makes medical industry application possible.









LAMINATING MATERIALS:

Solventless laminating machine can laminate below materials

Fabric + fabric:textiles, jersey, fleece, Nylon, Velvet, Terry cloth, Suede,etc.

Fabric + films, such as PU film, TPU film, PE film, PVC film, PTFE film,etc.

Fabric+ Leather/Artificial Leather,etc.

Fabric + Nonwoven

Diving fabric

Sponge/ Foam.

Plastics

EVA+PVC







WIDELY USED IN:

Solventless laminating machine is for below industry

Textiles and Garments Industry

Medical Products Industry

Bags and Luggage Industry

Packaging Industry

Footwear Industry

Decoration Industry

Auto interior decoration Industry











Blackout Curtain Fabric Lamination:



When PTFE, PE, TPU and other functional waterproof and breathable films are used in laminating, waterproof and heat preserving, waterproof and protective, oil & water & gas filteration and many other different new materials will be created. The demands of garment industry, motor manufacturing, medical industry, environment protection industry will be met.

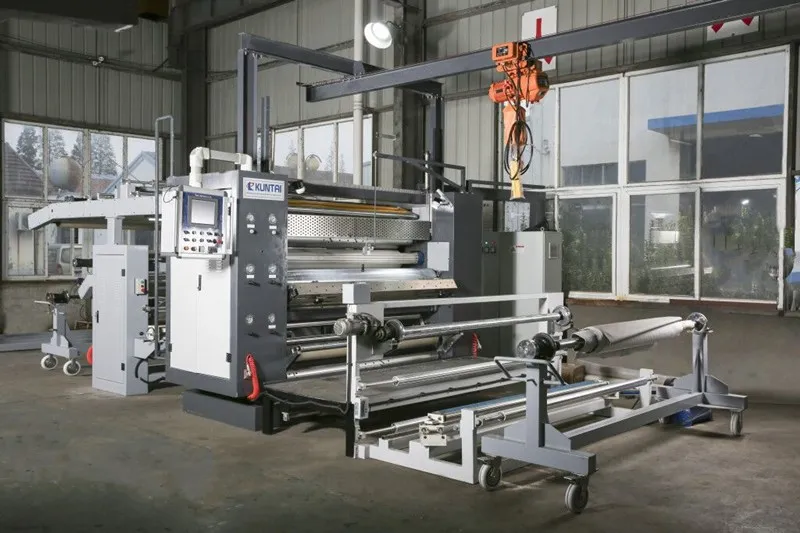

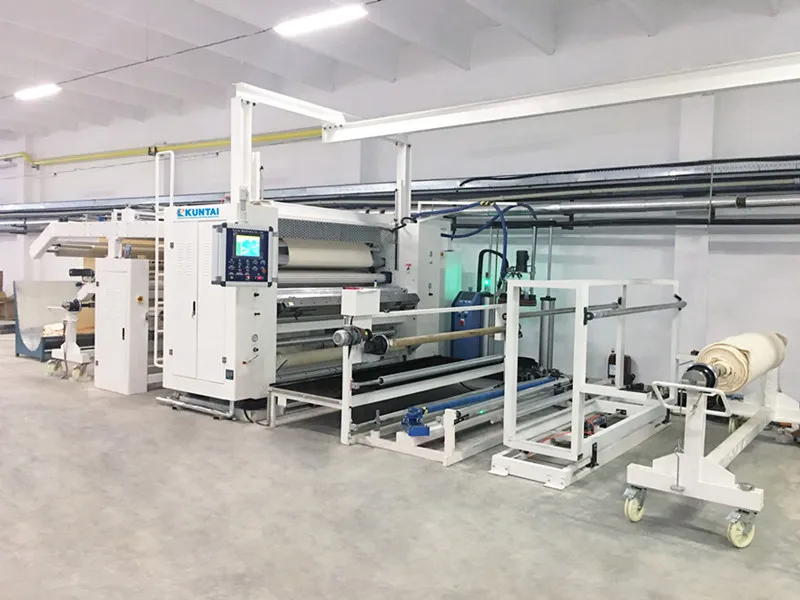

Our hot melt laminating machine is mainly consisted of fabric rewinding and unwinding units, fabric and film transmission systems and tension controller, film unwinding and lining or film carrier rewinding device, hot melt glue melting unit (optional), pump (optional), conduction oil source system (optional), glue dot transfer unit, laminating device, cooling device, PLC and other devices. It is compact, highly automatic and easy to maintain.









APPLICATION AND FEATURES OF HOT MELT LAMINATING MACHINE



1. Applied for gluing and laminating of hot melt glue onto textiles and nonwoven materials.

2. Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.

3. It's of good adhesive property,flexibility,thermostability,non-cracking property at low temperature.

4. Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.

5. Famous brand motors and inverters can be installed for stable machine performance

6. Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.

7. Fabric and film openers also makes materials feed smoothly and flatly.

8. For 4-way stretch fabrics, special fabric transmission belt can be installed on the laminating machine.

9. Impregnability of temperature after PUR,lasting elasticity,wear-resistance,oil resistance and anti oxidation.

10. Low maintenance cost and less running noise.

11. When it is applied in lamination of functional waterproof moisture permeable films such as PTFE,PE and TPU, more materials which are waterproofing and insulated, waterproof and protective and oil-water filtering will even be invented.







OPTION:

1. Accumulators for foam, textile, backlining, etc

2. Edge cutting device

3. Inspection machine

4. Swaying device to sway the final laminated materials into piles

5. Cutting machine







STANDARD TECKNICAL PARAMETERS OF LAMINATING MACHINE(CUSTOMIZABLE).



Model:	KT-PUR
Material Width:	1600mm-3400mm
Machine Roller Width:	1800mm-3600mm
Gluing Amount:	Customizable
Machine speed:	25-50m/min
Power:	65.0KW
Electric Current and Voltage:	Customizable
Net Weight:	11500KGS
Dimension:	11800 x 3400 x 3800mm







Solventless laminating machine shipment











Quality certificate



We have CE certificate, ISO9001 certificate and so on.







FAQ



1. Are you a trading company or a manufacturer?
We are a manufacturer with more than 38 years of manufacturing and R&D experience.

2. Where is your factory?
We are located in Yancheng, three and a half hours drive from Shanghai, China. It only takes about 2hours by fast train.


3. Do you have a personal R & D department?
Yes we have. We have established our Kuntai R&D center with famous university Padova,Italy in Europe. Kuntai Machinery Co., Ltd as a professional manufacturer with more than 38 years experience in various Laminating Machine&Cutting Machine and other finishing machines. We always believe in technology- and market-oriented research. Every year, we develop a series of solutions to actual field application problems and develop new machines for our customers such as Tesla, Toyota, BMW of Germany, KIA of South Korea, 3M company and so on.

We also can provide customized machine services according to the actual needs of customers.
Our goal is to solve every field problem with customers, achieve better material finishing / processing results, and become
customers' think tank.If you have any new ideas for our machines, please feel free to contact us!

4. How do I trust your quality?
We have a strict and scientific quality control management system, and have passed the strict CE and ISO international certifications inspections. We have professional quality control personnel. For each step of our machine production, a set of quality control teams will be responsible for checking. The following steps can not be performed before the item passes all inspections. At the end of the machine assembly, a series of tests will be performed. We will not deliver it until the machine passes all tests. We provide a one-year warranty for our machines. Generally, our customers have used our machines for at least 5 years, 8 years or even 10 years. Throughout the life of our machines, spare parts will be replaced at cost.



5. How to operate the machine?
We have never used such a machine before. We just want to expand our business and start a new business. Do not worry! When buying our first machine, almost the majority of overseas customers were in the same situation. We have skilled and experienced follow-up service staff who have developed a complete solution to meet the needs of customers like you. In addition, we have a team of professional engineers with rich experience in installation and commissioning, which can perform installation, testing and operation guidance of overseas machines.
