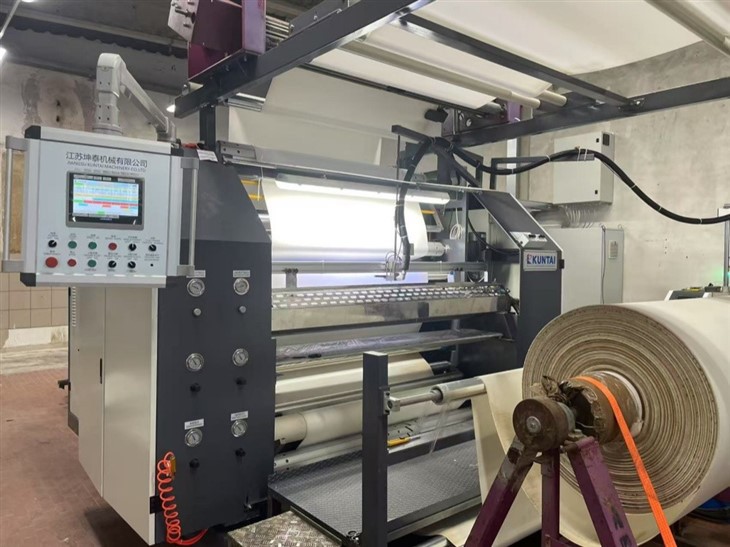

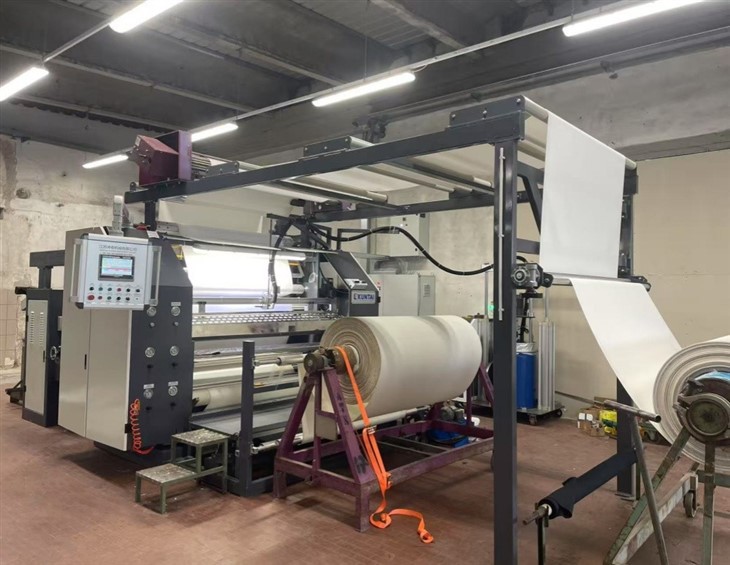

Hot Melt Coating And Laminating Machine

Multi-purpose coating and laminating machine







Scope of application

The Multi-purpose coating and laminating machine is designed for production of dot application for bonding and lamination. The multi-purpose application head allows easy and fast change over between two different application systems.



The following two application systems are integral parts of the unit:

1. Multi roller system. Gap-pre dosing position which is useful for a full cover coating structure or for an open coating structure with plain roller.

2. Gravure roller system. Can be with both positive blade position and negative blade position.

The multi-purpose system consists of a revolver-dosing-head and a gravure roller which will be used as an application roller.

The revolver-dosing-head can be adjusted in three different working positions against the gravure application roller.



The machine which is technically described below is designed to produce the following products:

Bonding fabric to fabric (knitted fabric, woven fabric)

Lamination of films and membranes to fabric or non-woven

Adhesive: HMPUR, thermoplastic

For these purposes the machine will be equipped with a gravure roller.







Hot Melt Adhesive:



In industrial use, hot melt adhesives provide several advantages over solvent-based adhesives. Volatile organic compounds are reduced or eliminated, and the drying or curing step is eliminated. Hot melt adhesives have long shelf life and usually can be disposed of without special precautions.



The most advanced hot melt adhesive, moisture reactive hot melt glue (PUR & TPU), is highly adhesive and environmentally friendly. It can be used for lamination of 99.9% textiles. The laminated material is soft and high temperature resistant. After moisture reaction, the material will not be easily affected by the temperature. Besides, with lasting elasticity, the laminated material is wear resistant, oil resistant and aging resistant. Especially, mist performance, neutral color and other various features of PUR makes medical industry application possible.















WIDELY USED IN:

Solventless laminating machine is for below industry

Textiles and Garments Industry

Medical Products Industry

Bags and Luggage Industry

Packaging Industry

Footwear Industry

Decoration Industry

Auto interior decoration Industry

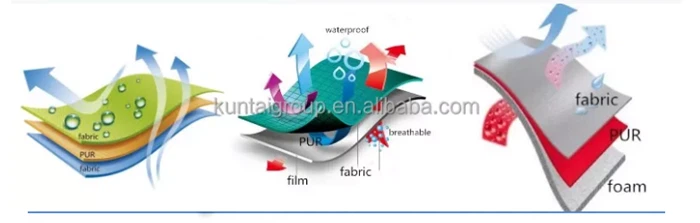

Blackout Curtain Fabric Lamination:



When PTFE, PE, TPU and other functional waterproof and breathable films are used in laminating, waterproof and heat preserving, waterproof and protective, oil & water & gas filteration and many other different new materials will be created. The demands of garment industry, motor manufacturing, medical industry, environment protection industry will be met.



Our hot melt laminating machine is mainly consisted of fabric rewinding and unwinding units, fabric and film transmission systems and tension controller, film unwinding and lining or film carrier rewinding device, hot melt glue melting unit (optional), pump (optional), conduction oil source system (optional), glue dot transfer unit, laminating device, cooling device, PLC and other devices. It is compact, highly automatic and easy to maintain.









APPLICATION AND FEATURES OF HOT MELT LAMINATING MACHINE



1. Applied for gluing and laminating of hot melt glue onto textiles and nonwoven materials.

2. Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.

3. It's of good adhesive property,flexibility,thermostability,non-cracking property at low temperature.

4. Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.

5. Famous brand motors and inverters can be installed for stable machine performance

6. Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.

7. Fabric and film openers also makes materials feed smoothly and flatly.

8. For 4-way stretch fabrics, special fabric transmission belt can be installed on the laminating machine.

9. Impregnability of temperature after PUR,lasting elasticity,wear-resistance,oil resistance and anti oxidation.

10. Low maintenance cost and less running noise.

11. When it is applied in lamination of functional waterproof moisture permeable films such as PTFE,PE and TPU, more materials which are waterproofing and insulated, waterproof and protective and oil-water filtering will even be invented.







OPTION:

1. Accumulators for foam, textile, backlining, etc

2. Edge cutting device

3. Inspection machine

4. Swaying device to sway the final laminated materials into piles

5. Cutting machine







STANDARD TECKNICAL PARAMETERS OF LAMINATING MACHINE(CUSTOMIZABLE).



Model:	KT-PUR
Material Width:	1600mm-3400mm
Machine Roller Width:	1800mm-3600mm
Gluing Amount:	Customizable
Machine speed:	25-50m/min
Power:	65.0KW
Electric Current and Voltage:	Customizable
Net Weight:	11500KGS
Dimension:	11800 x 3400 x 3800mm

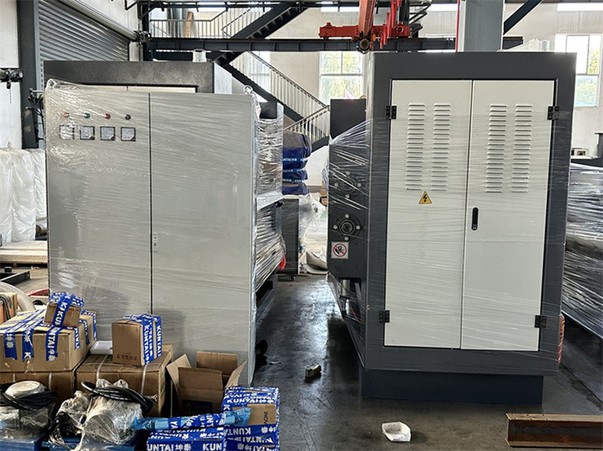

Solventless laminating machine shipment











Quality certificate



We have CE certificate, ISO9001 certificate and so on.







FAQ

1. Where is your factory?
We are located in Yancheng, three and a half hours drive from Shanghai, China. It only takes about 2 hours by fast train.


2. What information should clients offer for you for the correct lamination machine

a. Type of materials to be laminated?

b. Maximum width of roll materials?

c. Intended end application of laminated materials?



3. What is your payment terms?

Standard is 30% deposit, 70% balance before shipment. Or 100% LC at sight.
