Double Belt Laminating Press

Double belt laminating press



Kuntai's double belt laminating press is a highly efficient and versatile machine, used for continuous pressing and laminating or bonding different materials, such as films, fabrics, mats, foam, EVA and so on. The double belt conveyors method allows for the continuous production of sheet and plate materials as well.

Under the influence of certain process parameters such as pressure, heating temperature, cooling temperature, speed, and inlet/outlet clearance, thermoplastic adhesives can be used to bond, coat, or compress various materials in rolls or sheets. By considering the specific requirements of each application, the double belt press can be tailored to meet the diverse needs of different industries.

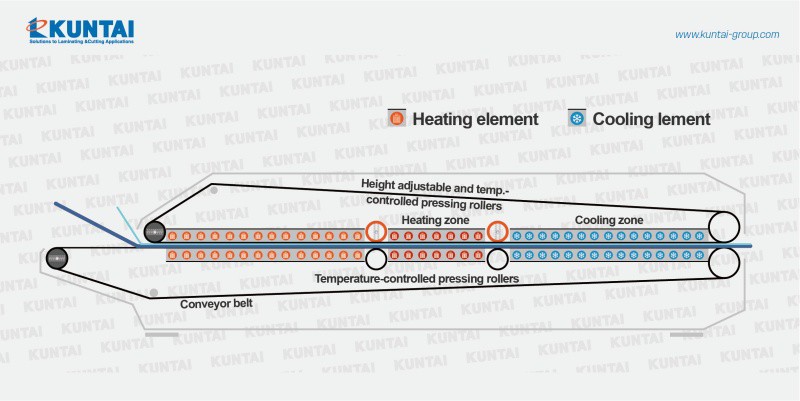

In order to avoid possible irregularities and ensure the uniformity of the composite material, the materials are slowly heated and pressurized in different heating areas to achieve the required performance, and then bonded together. The cooling system is also divided into multiple areas to ensure the suitable cooling effect of the product. Divided zones of heating and cooling play a decisive role here.

We provide height adjustable pressure rollers to meet the high pressure requirements for materials. This pair of pressure rollers is placed between the heating and cooling systems, and temperature control functions are available for choice.







Our machine structure is customized. Pls see below photos.











Skills in new dimensions

Our double belt laminating press designed in sturdy frame construction, we install separately spring-mounted elements, large roller diameters for precise pressure and combine chain guided, servo-driven conveyor belts.

We meet the increasing demands of long heating and cooling zones as well as large widths with large sized drive rollers.

Belt's tension is generated either by means of springs or hydraulics. Belt control is carried our either by means of chain guidance or proportionally controlled belts.









Features of double belt laminating presses

1. Flexibly arranged heating elements

2. Edge zone division in the entire heating system

3. Different materials and material thicknesses possible

4. Multi-layer composite materials possible

5. For both sheet and roll material

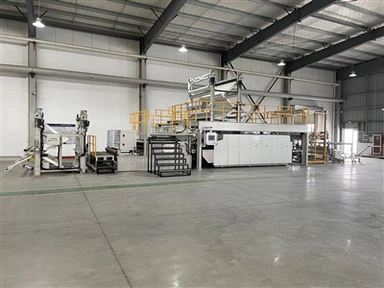

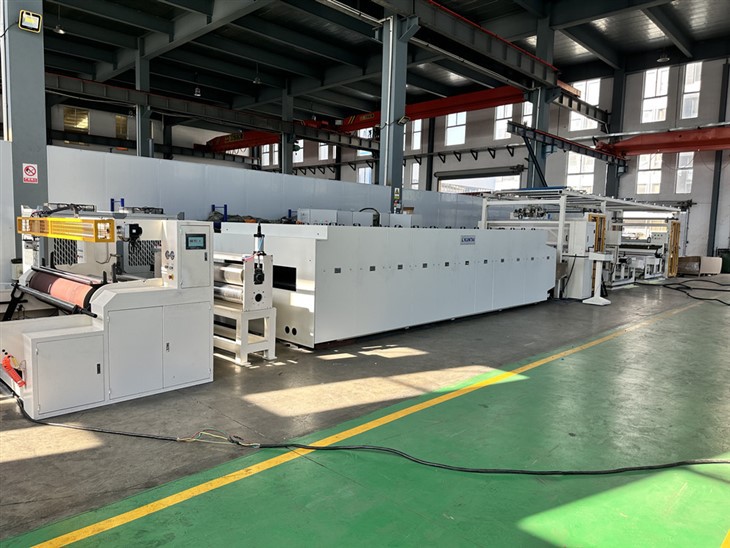

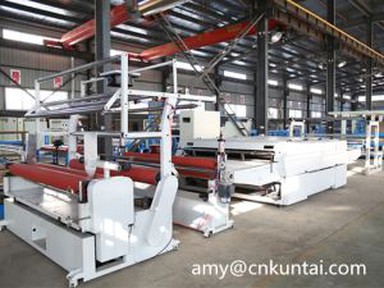

Photos of double belt laminating press















The double belt laminating press is widely used in the high and new tech materials industry, such as:

✓ Automotive: seat heating lamination, interior decoration,vehicle roof, insulation reinforcement roof boards

✓ Insulation: insulation materials, glass and recycled fiber insulation materials, honeycomb structure materials

✓ Filter industry: activated carbon filter, filtration media

✓ Carbon fiber fabric

✓ Glass fiber composites: glass-pp mats, glass mats, PP fiberglass composite

✓ Activated carbon textiles material

✓ Honeycomb panel materials

✓ Advanced functional lamination, PE materials, medical supplies, footwear, etc.









Double belt laminating press standard shipment
