Nonwoven Laminating Machine
Nonwoven laminating machine Product discription Product Introduction: In industrial use, hot melt adhesives provide several advantages over solvent-based adhesives. Volatile organic compounds are reduced or eliminated, and the drying or curing step is eliminated. Hot melt adhesives have long...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Nonwoven laminating machine
Product discription
|
Maximum Material Width |
1600mm/Customizable |
|||
|
Machine Roller Surface |
1800mm/Customizable |
|||
|
Machine Speed |
5-50m/min/Customizable |
|||
|
Machine Dimension |
11800 x3400 x 3700 mm(L*W*H) |
|||
|
Machine Weight |
11000kg |
|||
|
Heating Method |
Electric Heating |
|||
|
Glue Type |
Hot Melt PUR Glue |
|||
|
Max Temperature |
200°C |
|||
|
Laminating Temperature |
120°C, Customizable |
|||
|
Gluing Way |
Dot Transfer or Full coating |
|||
Product Introduction:
In industrial use, hot melt adhesives provide several advantages over solvent-based adhesives. Volatile organic compounds are reduced or eliminated, and the drying or curing step is eliminated. Hot melt adhesives have long shelf life and usually can be disposed of without special precautions.
The most advanced hot melt adhesive, moisture reactive hot melt glue (PUR & TPU), is highly adhesive and environmentally friendly. It can be used for lamination of 99.9% textiles. The laminated material is soft and high temperature resistant. After moisture reaction, the material will not be easily affected by the temperature. Besides, with lasting elasticity, the laminated material is wear resistant, oil resistant and ag-ing resistant. Especially, mist performance, neutral color and other various features of PUR makes medical industry application possible.
When PTFE, PE, TPU and other functional waterproof and breathable films are used in laminating, water-proof and heat preserving, waterproof and protective, oil & water & gas filteration and many other different
The most advanced hot melt adhesive, moisture reactive hot melt glue (PUR & TPU), is highly adhesive and environmentally friendly. It can be used for lamination of 99.9% textiles. The laminated material is soft and high temperature resistant. After moisture reaction, the material will not be easily affected by the temperature. Besides, with lasting elasticity, the laminated material is wear resistant, oil resistant and ag-ing resistant. Especially, mist performance, neutral color and other various features of PUR makes medical industry application possible.
When PTFE, PE, TPU and other functional waterproof and breathable films are used in laminating, water-proof and heat preserving, waterproof and protective, oil & water & gas filteration and many other different
new materials will be created. The demands of garment industry, motor manufacturing, medical industry, environment protection industry will be met.

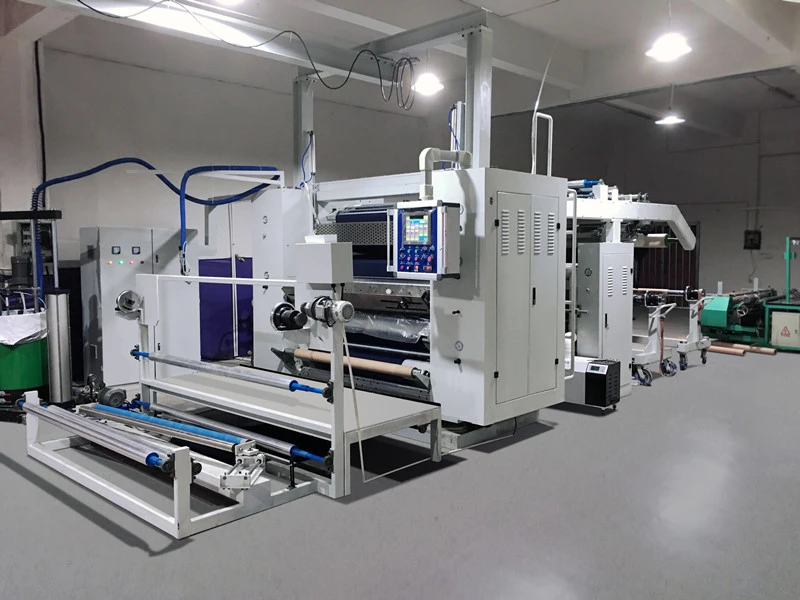

Our hot melt laminating machine is mainly consisted of fabric rewinding and unwinding units, fabric and film transmission systems and tension controller, film unwinding and lining or film carrier rewinding device, hot melt glue melting unit (optional), pump (optional), conduction oil source system (optional), glue dot transfer unit, laminating device, cooling device, PLC and other devices. It is compact, highly automatic and easy to maintain. We make all types of machine designs as per specific application requirements.
Our hot melt laminating machine is mainly consisted of fabric rewinding and unwinding units, fabric and film transmission systems and tension controller, film unwinding and lining or film carrier rewinding device, hot melt glue melting unit (optional), pump (optional), conduction oil source system (optional), glue dot transfer unit, laminating device, cooling device, PLC and other devices. It is compact, highly automatic and easy to maintain. We make all types of machine designs as per specific application requirements.
Features and Advantages:
1. Hot melt PUR lamination machine is widely used in: textile and garment industry, medical products industry, bags and luggage industry, upholstery industry, packaging industry, footwear industry, interior decoration industry, etc.
2. Uniformly gluing/coating of hot melt glue onto textiles, nonwoven materials, foam, film/membrane, etc.
3. Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.
4. Gluing gap and lamination gap can be precisely adjusted.
5. Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.
6. Famous brand motors, electrical parts,and inverters can be used for stable machine performance
7. Good tension control makes laminated materials smooth and flat, guaranteeing good bonding effect.
8. Various fabric and film openers feed materials smoothly and flatly.
9. For different fabric, different fabric conveyor and expanding devices are available for choice.
10. Low maintenance cost and less running noise.
11. When it is applied in lamination of functional waterproof moisture permeable films such as PTFE, PE and TPU, more materials which are waterproofing and insulated, waterproof and protective will even be invented.
12. For different application, different rewinding devices are available for choice.
2. Uniformly gluing/coating of hot melt glue onto textiles, nonwoven materials, foam, film/membrane, etc.
3. Hot melt adhesives makes possible environmental friendly products and realizes no pollution during the whole process of lamination.
4. Gluing gap and lamination gap can be precisely adjusted.
5. Controlled by Programmable Logic Controller system with touch screen and modular designed structure, this machine can be easily and simply operated.
6. Famous brand motors, electrical parts,and inverters can be used for stable machine performance
7. Good tension control makes laminated materials smooth and flat, guaranteeing good bonding effect.
8. Various fabric and film openers feed materials smoothly and flatly.
9. For different fabric, different fabric conveyor and expanding devices are available for choice.
10. Low maintenance cost and less running noise.
11. When it is applied in lamination of functional waterproof moisture permeable films such as PTFE, PE and TPU, more materials which are waterproofing and insulated, waterproof and protective will even be invented.
12. For different application, different rewinding devices are available for choice.
Scope of applications
APPLICATION:
1. EVA + PVC, PU or artificial leather
2. EVA + fabric (For shoe materials, etc.)
3. Neoprene + fabric (For diving fabrics, diving suits, etc.)
4. PU foam + fabric (For bras, car interior seats, etc.)
5. TPU film + fabric. (Used in mountaineering clothes, camouflage clothes, etc.)
6. Breathable membrane + non-woven fabric. (For medical protective clothing supplies, etc.)
7. Fabric + fabric: textile, jersey fabric, wool, nylon, velvet, terry cloth, suede, etc.
8. Fabric + film, such as PU film, TPU film, PE film, PVC film, PTFE film, etc. and many more.....

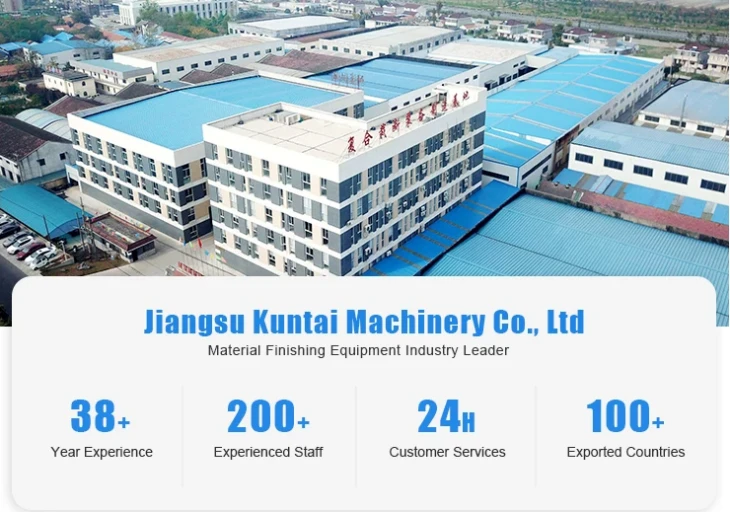

Company profile
About us
Jiangsu Kuntai Machinery Co., Ltd has 38+ years' expriences in designing and manufacturing lamination machines, cutting machines and various other material proessing machines for fabric, nonwoven cloth, sponge, leather, artificial leather, paperboard, films, EVA, PUR, TPU, PVC and other materials in various industries, such as garment industry, footwear industry, bags or belts making industry, motor interior decoration industry. upholstery-home texile industry, health care industy and so on.
