UD weft cloth production line
adopts stable mechanical rolling parts and special ultrahigh pressure device to evenly spread wire, impregnated with resin glue, and then laminated by 0/90º orthogonal composite at the end.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

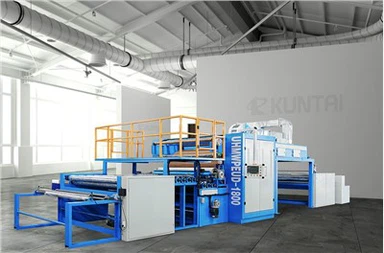

UD Prepregs Impregnation Machine
Main process:
Fiber rack→Arrange→Beam-warping→Exhibition silk →Soakage→Membranae tectoria →Desiccation → Tractive → Rewinding device

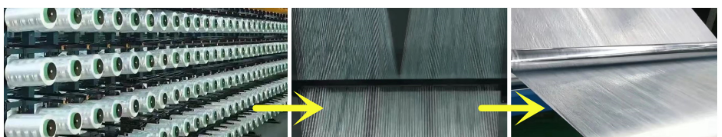

Place the ultra-high molecular weight polyethylene fiber on the silk rack, roll back to the cluster device and arrange in parallel.The parallel PE fibers after the cluster pass through the finishing device to form the parallel and closely packed filament bundles.After the spread of the ribbon, add tension to ensure the smoothness of the ribbon.After infiltrating the fiber with the adhesive device, recombining the PE bearing membrane through the uniform filament bundle after the adhesive device,After the heat roller evaporation resin solvent curing, forming a one-way PEUD cloth.
PRODUCTION INFORMATION:
UD weft cloth production line adopts stable mechanical rolling parts and special ultrahigh pressure device to evenly spread wire, impregnated with resin glue, and then laminated by 0/90º orthogonal composite at the end.
1. The UD non-weft fabric production line adopts stable mechanical operation rollers and special-shaped devices to spread the yarn evenly, impregnate with resin glue and lamination with the carrier PE film, dry and solidify, and then go through the 0/90º orthogonal lamination in the back. The product has excellent properties such as low density, abrasion resistance, impact resistance, and strong cutting resistance.
2. The equipment uses water-based or oil-based resin adhesives to produce PEUD non-weft fabrics.
3. Adopt HMI+PLC control system, easy operation, high production efficiency, and reduce the tedious operation.
4. The mirror surface processing rollers are used for thread pulling and thread laying to ensure that the damage to the fiber performance is reduced to the greatest extent during the operation.
5. The whole machine adopts gear transmission, which has strong torque transmission and stability.
STANDARD TECKNICAL PARAMETERS
| Model: | KT-1800 |
| Maximum Material Width: | 1600mm |
| Machine Roller Width: | 1800mm |
| Machine speed: | 5-30m/min |
| Power: | 180KW |
| Electric Current and Voltage: | Customizable |
| Net Weight: | 9000KGS |
| Dimension: | 6000*2000*1250mm |

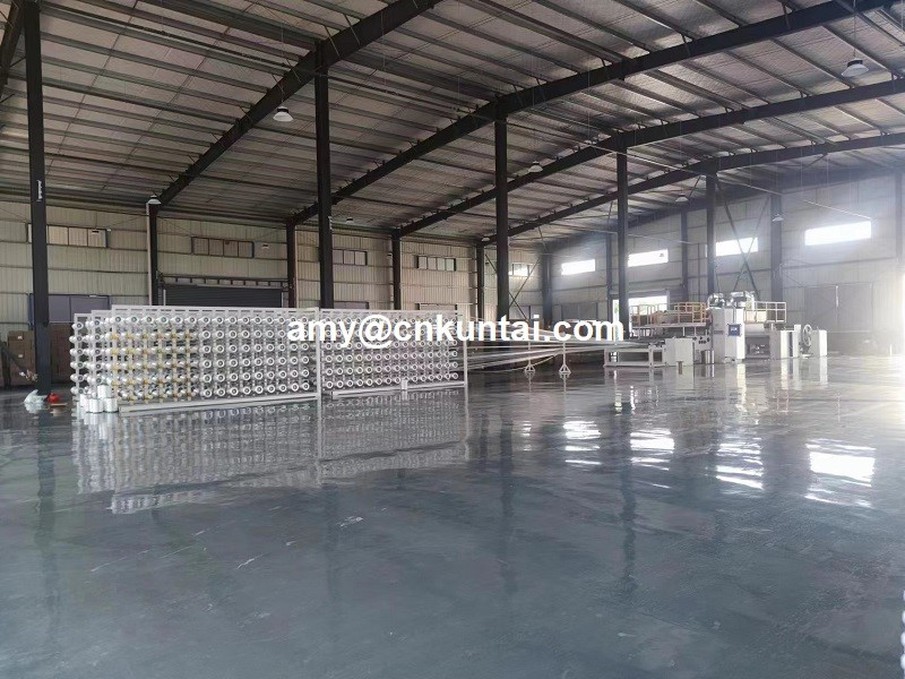

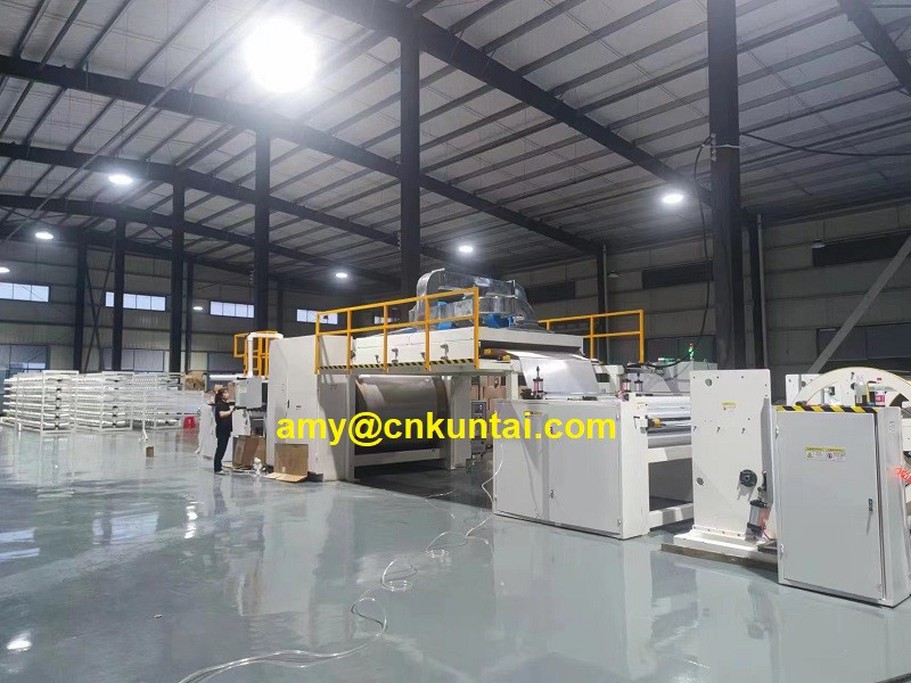

PICTURE:
